XMC4400F100K256ABXQSA1 - Infineon

Description: MCU 32-bit ARM Cortex M4 RISC 256KB Flash 3.3V 100-Pin LQFP EP Tray

Download XMC4400F100K256ABXQSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XMC4400F100K256ABXQSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

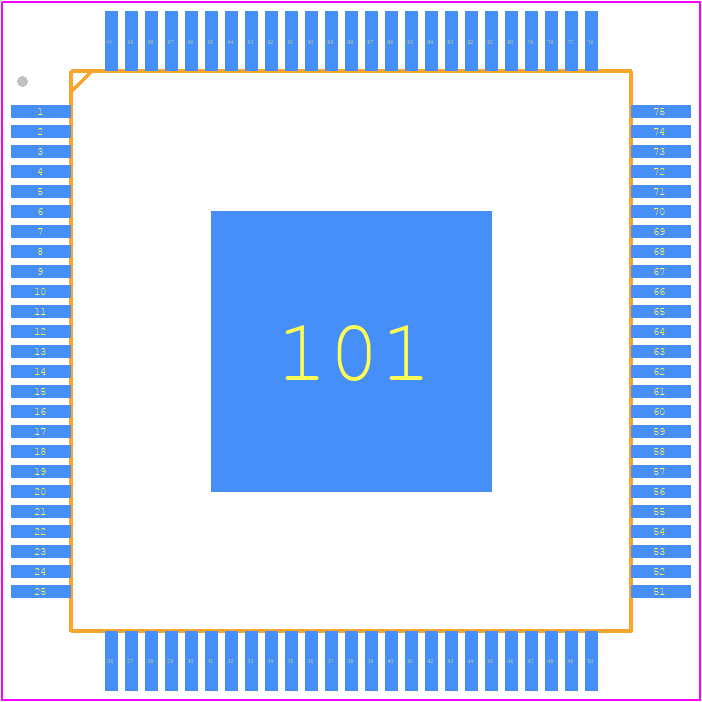

XMC4400F100K256ABXQSA1 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-LQFP-100-11
click to zoom
3D Models
XMC4400F100K256ABXQSA1 - Infineon - 3D model - Quad Flat Packages - PG-LQFP-100-11
click to zoom

XMC4400F100K256ABXQSA1 Details

  • Manufacturer Part Number:

    XMC4400F100K256ABXQSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LQFP-100

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G100

  • Length:

    14 mm

  • Number of I/O Lines:

    73

  • Number of Terminals:

    100

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    81920

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    120 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

XMC4400F100K256ABXQSA1 Frequently Asked Questions (FAQs)

  • The XMC4400F100K256ABXQSA1 can operate in a temperature range of -40°C to 125°C.
  • The clock settings for the XMC4400F100K256ABXQSA1 can be configured using the Clock Generation Unit (CGU) module. The CGU module allows you to configure the clock sources, clock dividers, and clock outputs. You can use the Infineon DAVE development environment or the XMC4400 datasheet to learn more about configuring the clock settings.
  • The maximum current consumption of the XMC4400F100K256ABXQSA1 depends on the operating mode and the clock frequency. According to the datasheet, the maximum current consumption is around 120 mA at 120 MHz clock frequency and 3.3 V supply voltage.
  • The XMC4400F100K256ABXQSA1 can be programmed using the Infineon DAVE development environment, which provides a graphical user interface for configuring and programming the microcontroller. You can also use other programming tools such as Keil µVision, IAR Embedded Workbench, or GCC-based toolchains.
  • The XMC4400F100K256ABXQSA1 has a boot mode that allows it to boot from an external flash memory or from the internal ROM. The boot mode can be configured using the Boot Mode Configuration Register (BMCR).
