XMC4500F100K1024ACXQSA1 - Infineon

Description: Infineon XMC4500F100K1024ACXQSA1, 32bit ARM Cortex M4 MCU, 120MHz, 1024 kB Flash, 100-Pin LQFP

Download XMC4500F100K1024ACXQSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XMC4500F100K1024ACXQSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

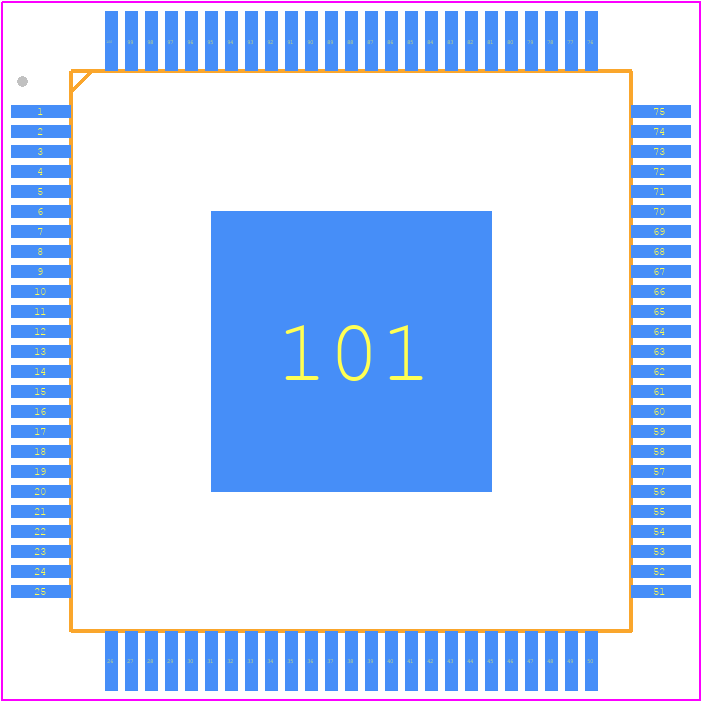

XMC4500F100K1024ACXQSA1 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-LQFP-100-11
click to zoom
3D Models
XMC4500F100K1024ACXQSA1 - Infineon - 3D model - Quad Flat Packages - PG-LQFP-100-11
click to zoom

XMC4500F100K1024ACXQSA1 Details

  • Manufacturer Part Number:

    XMC4500F100K1024ACXQSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Taiwan

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    73

  • Number of Terminals:

    100

  • PWM Channels:

    YES

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Speed:

    120 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

XMC4500F100K1024ACXQSA1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the XMC4500F100K1024ACXQSA1 is -40°C to 125°C.
  • The clock settings for the XMC4500F100K1024ACXQSA1 can be configured using the Clock Generation Unit (CGU) module. Refer to the Infineon XMC4500 documentation for detailed instructions.
  • The maximum frequency of the XMC4500F100K1024ACXQSA1 is 120 MHz.
  • The ADC on the XMC4500F100K1024ACXQSA1 can be used by configuring the ADC module and setting up the ADC channels. Refer to the Infineon XMC4500 documentation for detailed instructions.
  • The power consumption of the XMC4500F100K1024ACXQSA1 depends on the operating frequency and voltage. Refer to the Infineon XMC4500 datasheet for detailed power consumption specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XMC4500F100K1024ACXQSA1 Overview

Use the download button to access the XMC4500F100K1024ACXQSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XMC45, or try a keyword search, such as Microcontrollers
