XMLCTW-A0-0000-00C3ABB02 footprint, schematic symbol and 3D model by CREE LED

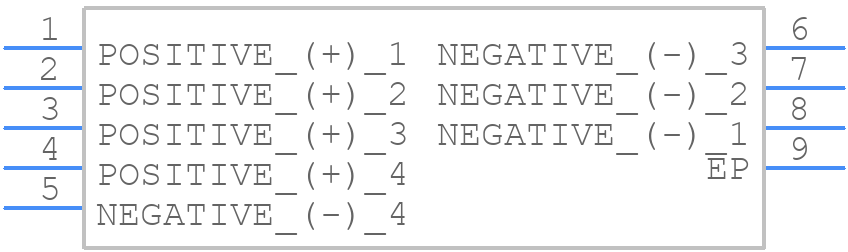

Symbol

PCB Footprints

3D Models

XMLCTW-A0-0000-00C3ABB02 Details

The recommended operating temperature range for the XMLCTW-A0-0000-00C3ABB02 is -40°C to 85°C.
Proper thermal management can be achieved by mounting the LED module to a heat sink or metal core PCB, and ensuring good airflow around the module.
The maximum current rating for the XMLCTW-A0-0000-00C3ABB02 is 700mA.
Yes, the XMLCTW-A0-0000-00C3ABB02 is suitable for outdoor applications, but it's recommended to use a suitable enclosure and follow proper sealing and gasketing to ensure IP67 rating.
Follow the recommended soldering profile and use a solder with a melting point below 260°C to prevent damage to the LED module.

System Verified

Use the download button to access the XMLCTW-A0-0000-00C3ABB02 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like XMLCT, or try a keyword search, such as Visible LEDs
