XMLCTW-A0-0000-00C3ACC02 - CREE LED

Description: High Power LEDs - Multi-Color RGB-White

Download XMLCTW-A0-0000-00C3ACC02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

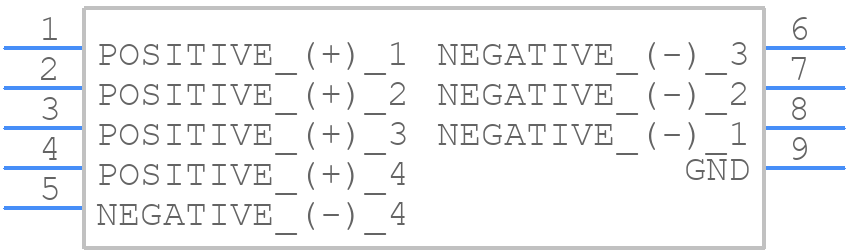

XMLCTW-A0-0000-00C3ACC02 - CREE LED - PCB symbol
click to zoom
PCB Footprints

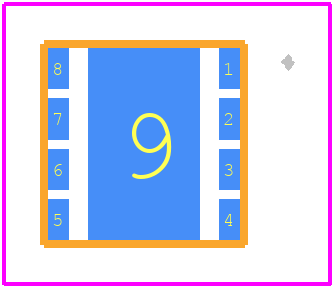

XMLCTW-A0-0000-00C3ACC02 - CREE LED PCB footprint - Other - Other - XMLCTW-A0-0000-00C3ACC02-3
click to zoom
3D Models
XMLCTW-A0-0000-00C3ACC02 - CREE LED - 3D model - Other - XMLCTW-A0-0000-00C3ACC02-3
click to zoom

XMLCTW-A0-0000-00C3ACC02 Details

  • Manufacturer Part Number:

    XMLCTW-A0-0000-00C3ACC02

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Cree, Inc.

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Color:

    RED/GREEN/BLUE/COOL WHITE

  • Configuration:

    SEPARATE, 4 ELEMENTS WITH BUILT-IN ZENER DIODE

  • Forward Current-Max:

    1 A

  • Forward Voltage-Max:

    2.6 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Optoelectronic Device Type:

    MULTIPLE COLOR LED

  • Overall Height:

    3.02 mm

  • Packing Method:

    TR, 13 INCH

  • Shape:

    ROUND

  • Size:

    4.52 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    1.26 mm

  • Viewing Angle:

    130 deg

XMLCTW-A0-0000-00C3ACC02 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range is -40°C to 100°C.
  • Yes, the component is suitable for outdoor use, but it's essential to follow proper sealing and encapsulation methods to ensure reliability.
  • The maximum junction temperature (Tj) is 150°C.
  • Handle the component by the ceramic body, avoiding direct contact with the LED chip or wire bonds. Use anti-static wrist straps and mats to prevent ESD damage.
  • The recommended soldering temperature profile is 260°C for 3 seconds, with a peak temperature of 240°C for 10 seconds.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XMLCTW-A0-0000-00C3ACC02 Overview

Use the download button to access the XMLCTW-A0-0000-00C3ACC02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XMLCT, or try a keyword search, such as Other Optoelectronics
