XMLDCL-00-0000-00C4AAAE5 - CREE LED

Description: LED Lighting Color XLamp® XM-L® Gen 2 Red, Green, Blue, White - Neutral (RGBW) 625nm Red, 528nm Green, 458nm Blue, 4000K White 2020 (5050 Metric)

Download XMLDCL-00-0000-00C4AAAE5 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XMLDCL-00-0000-00C4AAAE5 model

Email notifications will be applied after download.

Send part feedback

Symbol

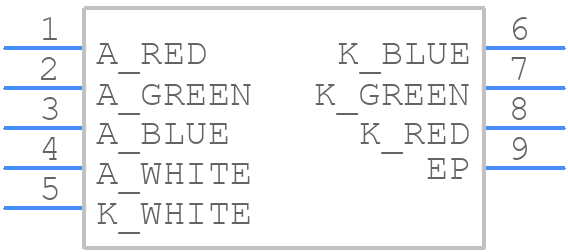

XMLDCL-00-0000-00C4AAAE5 - CREE LED - PCB symbol

PCB Footprints

XMLDCL-00-0000-00C4AAAE5 - CREE LED PCB footprint - Other - Other - 2020 (5050 Metric)_2025-1.1

3D Models

XMLDCL-00-0000-00C4AAAE5 - CREE LED - 3D model - Other - 2020 (5050 Metric)_2025-1.1

Datasheet Download Datasheet
Stock & Prices Price & Stock for XMLDCL-00-0000-00C4AAAE5
Part Number XMLDCL-00-0000-00C4AAAE5
Manufacturer CREE LED
Pin Count 9
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 2020 (5050 Metric)_2025-1.1
Released Date May 31, 2025
Last Modified Date May 31, 2025 1:34 PM UTC
Pinout / Pin List Click Here (Member Only)

XMLDCL-00-0000-00C4AAAE5 Details

Manufacturer Part Number:
XMLDCL-00-0000-00C4AAAE5
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.20.00
Factory Lead Time:
8 Weeks
Manufacturer:
Cree, Inc.
YTEOL:
6
Additional Feature:
MIL-STD-883D, UL RECOGNIZED
Color:
NEUTRAL WHITE/RED/GREEN/BLUE
Configuration:
SEPARATE, 4 ELEMENTS WITH BUILT-IN ZENER DIODE
Forward Current-Max:
1.75 A
Forward Voltage-Max:
2.7 V
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
8
Optoelectronic Device Type:
MULTIPLE COLOR LED
Overall Height:
3.02 mm
Packing Method:
TR, 13 INCH
Shape:
ROUND
Size:
4.52 mm
Surface Mount:
YES
Terminal Pitch:
1.26 mm
Viewing Angle:
120 deg

XMLDCL-00-0000-00C4AAAE5 Frequently Asked Questions (FAQs)

The recommended storage temperature range is -40°C to 100°C.
Yes, the component is suitable for outdoor use, but it's essential to follow proper sealing and encapsulation methods to ensure reliability.
The maximum forward current rating is 700mA, but it's recommended to operate within the specified current range for optimal performance and lifespan.
Proper thermal management is crucial. Ensure a good thermal interface between the LED and the heat sink, and maintain a junction temperature below 125°C.
Yes, follow the recommended soldering profile: 260°C peak temperature, 3°C/s ramp rate, and 10-15 seconds dwell time above 220°C.

Trust Checks

Community Provided

System Verified

Community Approved

XMLDCL-00-0000-00C4AAAE5 Overview

Use the download button to access the XMLDCL-00-0000-00C4AAAE5 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like XMLDC, or try a keyword search, such as Visible LEDs
