XMLDCL-00-0000-00C5AAAA1 footprint, schematic symbol and 3D model by CREE LED

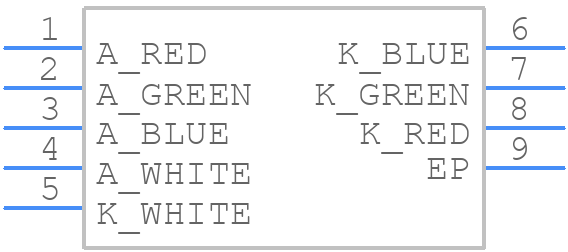

Symbol

PCB Footprints

3D Models

XMLDCL-00-0000-00C5AAAA1 Details

The recommended operating temperature range is -40°C to 85°C, with a maximum junction temperature of 125°C.
Proper thermal management can be achieved by using a heat sink with a thermal resistance of ≤ 10°C/W, and ensuring good airflow around the module. Additionally, the module should be mounted to a metal core PCB or a thermal interface material (TIM) to improve heat dissipation.
The maximum current rating is 1000mA, but it's recommended to operate the module at a maximum of 700mA to ensure optimal performance and lifespan.
Yes, the module is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and UV radiation.
Cree uses a proprietary binning and sorting process to ensure consistent performance and color quality. The module is sorted into different bins based on its luminous flux, color temperature, and color rendering index (CRI).
