MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip line design for the RF signal path. A detailed layout guide is available upon request.
The XP1035-QH-0G0T requires a bias voltage of 5V and a current of 300mA. A voltage regulator and a current limiting resistor are recommended to ensure stable operation.
The XP1035-QH-0G0T can handle up to 2W of input power. Exceeding this limit may result in reduced performance or damage to the device.
Common issues can be caused by improper biasing, poor PCB layout, or incorrect input/output matching. Check the datasheet for troubleshooting guidelines or contact MACOM support for assistance.
Yes, the XP1035-QH-0G0T is compatible with lead-free soldering processes, but MACOM recommends following the recommended soldering profile to ensure reliable assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XP1035-QH-0G0T Overview

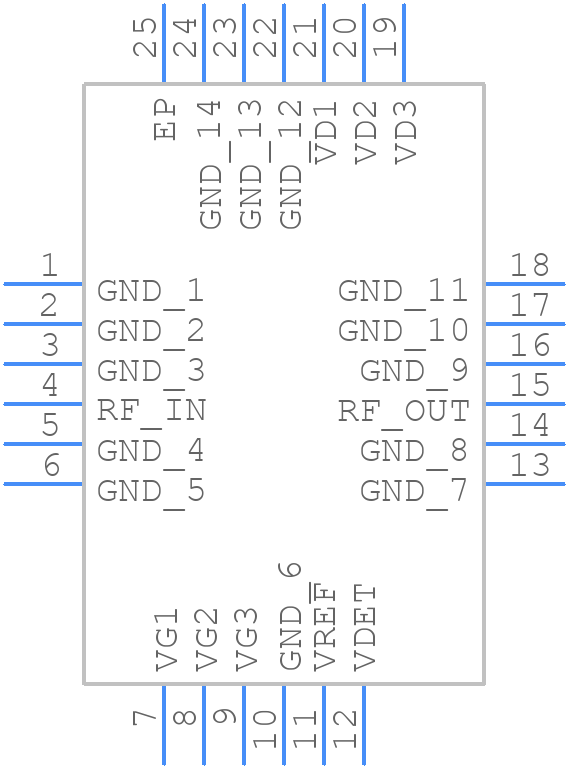

Use the download button to access the XP1035-QH-0G0T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XP103,
or try a keyword search, such as RF/Microwave Amplifiers
