XP1044-QL-0N00 - MACOM

Description: RF Amplifier 4.0-5.9GHz Gain 18.5dB Pout 26dBm

Download XP1044-QL-0N00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

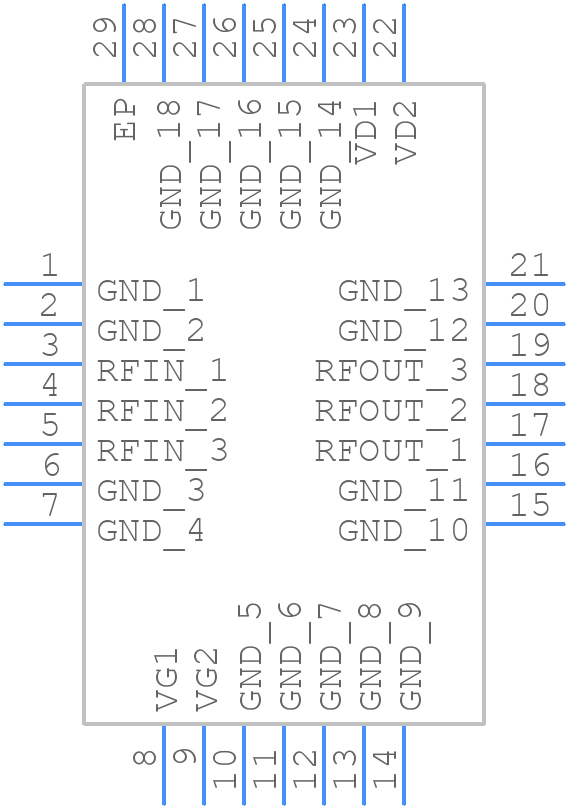

Symbol
XP1044-QL-0N00 - MACOM - PCB symbol
click to zoom
PCB Footprints
XP1044-QL-0N00 - MACOM PCB footprint - Other - Other - XP1044-QL-0N00-3
click to zoom
3D Models
XP1044-QL-0N00 - MACOM - 3D model - Other - XP1044-QL-0N00-3
click to zoom

XP1044-QL-0N00 Details

  • Manufacturer Part Number:

    XP1044-QL-0N00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT PACKAGE-28

  • Manufacturer:

    MACOM

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE AT 4900 TO 5900 MHZ

  • Construction:

    COMPONENT

  • Gain:

    16.5 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    3500 MHz

  • RF/Microwave Device Type:

    NARROW BAND MEDIUM POWER

  • Terminal Finish:

    Matte Tin (Sn)

XP1044-QL-0N00 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip or coplanar waveguide layout to minimize signal loss and ensure optimal performance.
  • The XP1044-QL-0N00 requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current to the device.
  • The XP1044-QL-0N00 is rated for operation from -40°C to 85°C. Operating the device outside this temperature range may affect its performance and reliability.
  • While the XP1044-QL-0N00 is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may require additional circuitry and design considerations.
  • The typical noise figure of the XP1044-QL-0N00 is around 2.5 dB. However, this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XP1044-QL-0N00 Overview

Use the download button to access the XP1044-QL-0N00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XP104, or try a keyword search, such as RF/Microwave Amplifiers
