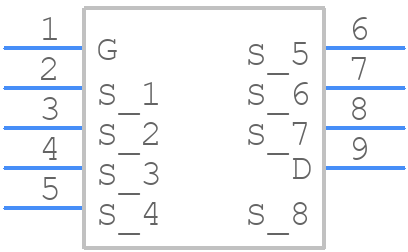

Symbol

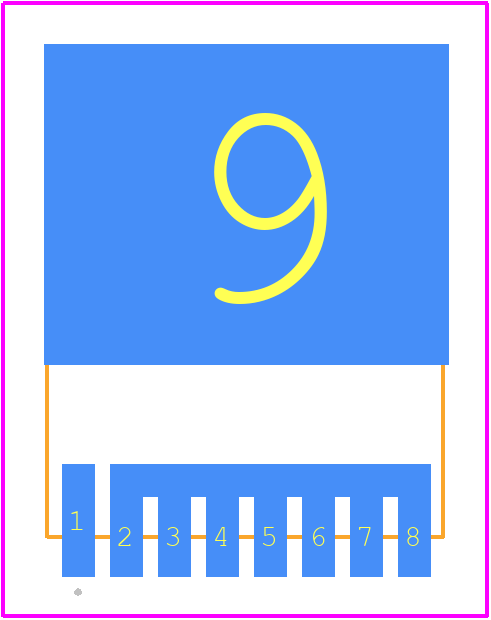

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XP10NA1R5TL
- Part Number XP10NA1R5TL
- Manufacturer Yageo Group
- Pin Count 10
- Part Category MOSFET (N-Channel)
- Package Category Other
- Footprint Name Other - XP10NA1R5TL
- Released Date Dec 12, 2025
- Last Modified Date Feb 4, 2026 2:20 PM UTC
- Pinout / Pin List Click Here (Member Only)
XP10NA1R5TL Details
-
Manufacturer Part Number:
XP10NA1R5TL
-
Manufacturer:
YAGEO Corporation
Trust Checks
Expert Contribution
System Verified
Community Approved
XP10NA1R5TL Overview
Use the download button to access the XP10NA1R5TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XP10N,
or try a keyword search, such as RF/Microwave Amplifiers
