XPC823EZT66B2 - Motorola

XPC823EZT66B2 Details

• Manufacturer Part Number:

  XPC823EZT66B2

• Part Life Cycle Code:

  Transferred

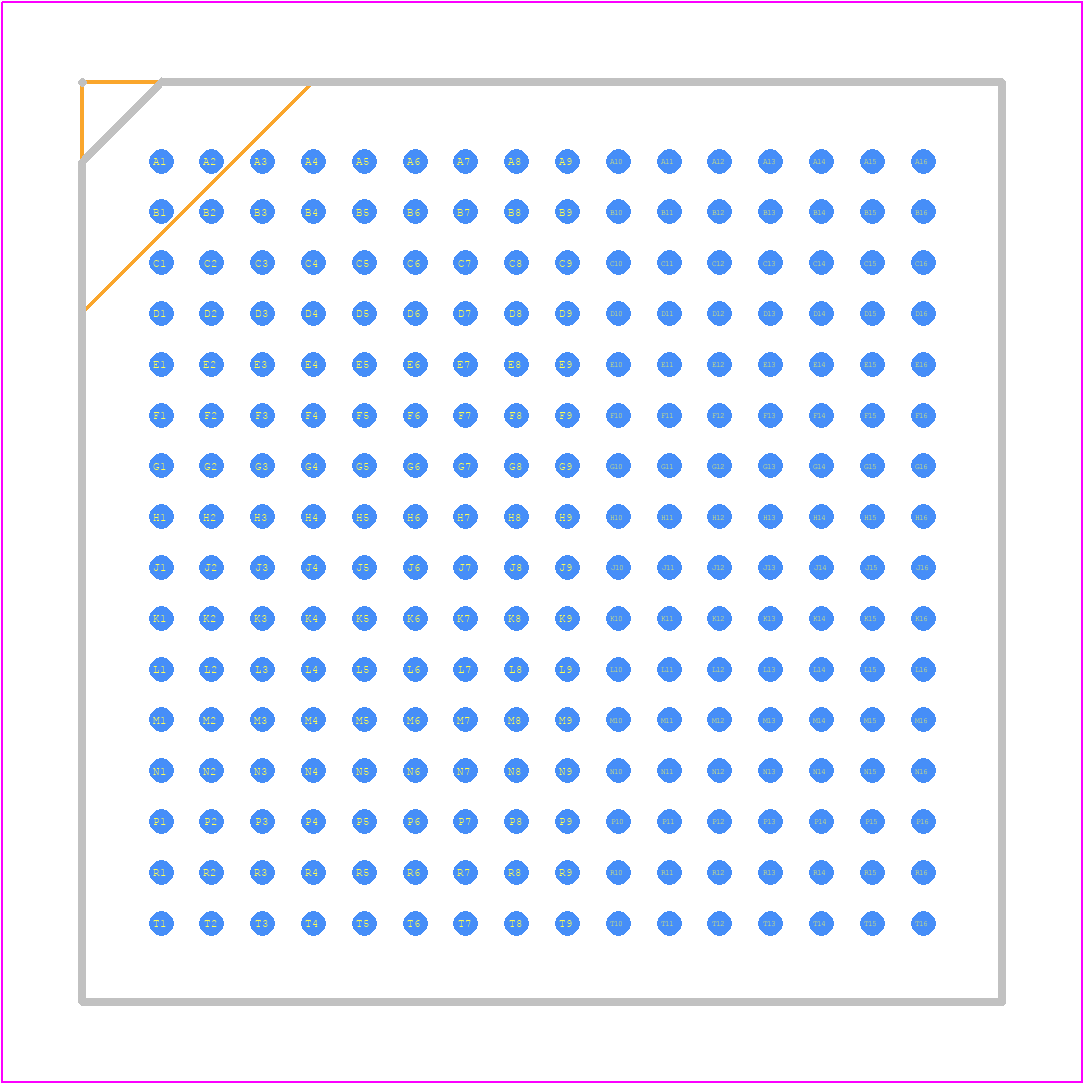

• Package Description:

  23 X 23 MM, 1.27 MM PITCH, PLASTIC, BGA-256

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Motorola Semiconductor Products

• Address Bus Width:

  26

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  5 MHz

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B256

• Length:

  23 mm

• Low Power Mode:

  YES

• Number of Terminals:

  256

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA256,23X23,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.35 mm

• Speed:

  66 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Width:

  23 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
