- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XR-2206CP-F
- Part Number XR-2206CP-F
- Manufacturer MaxLinear, Inc.
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

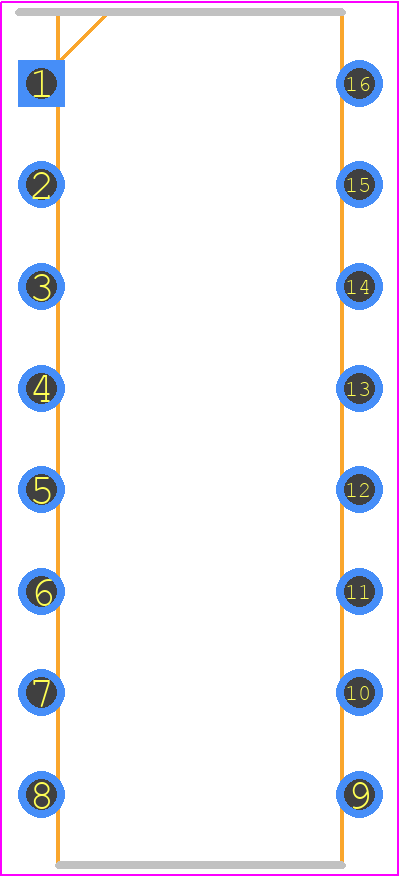

- Footprint Name Dual-In-Line Packages - 16 LEAD PLASTIC DUAL-IN-LINE (300 MIL PDIP)
- Released Date Apr 13, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XR-2206CP-F Details
-
Manufacturer Part Number:
XR-2206CP-F
-
Manufacturer:
MaxLinear Inc
Trust Checks
Community Provided
System Verified
Community Approved
XR-2206CP-F Overview

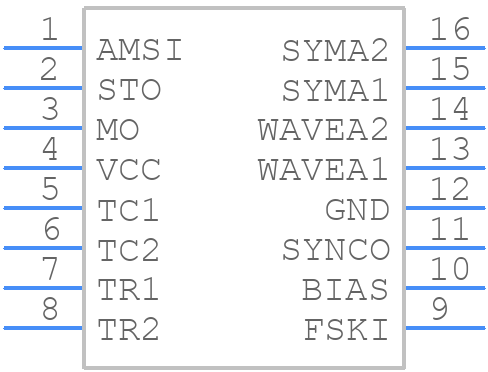

Use the download button to access the XR-2206CP-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR-22,
or try a keyword search, such as Analog Waveform Generation Functions
