Part Image

XR-2206CP - EXAR

Description: Monolithic Function Generator

Download XR-2206CP Model

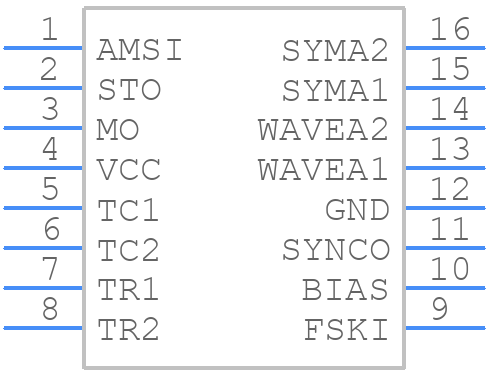

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XR-2206CP - EXAR PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - XR-2206CP
click to zoom
3D Models
XR-2206CP - EXAR  - 3D model - Dual-In-Line Packages - XR-2206CP
click to zoom

XR-2206CP Details

  • Manufacturer Part Number:

    XR-2206CP

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Exar Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SQUARE; TRIANGULAR; SINE; SAWTOOTH; PULSE

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    20.1295 mm

  • Number of Functions:

    1

  • Number of Terminals:

    1

  • Operating Temperature-Max:

    70 °C

  • Output Frequency-Max:

    1 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.334 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

XR-2206CP Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by the clock signal. This ensures that the internal bias circuitry is established before the clock signal is applied.
  • To ensure a stable state during power-up, it is recommended to add a power-on reset circuit to hold the XR-2206CP in a reset state until the power supplies have stabilized.
  • The maximum clock frequency that can be used with the XR-2206CP is 2.5 MHz. Exceeding this frequency may result in unstable operation or damage to the device.
  • Yes, the XR-2206CP can be used with a crystal oscillator. However, the crystal oscillator should be designed to operate at a frequency between 1.8 MHz and 2.5 MHz, and the crystal should have a load capacitance of 18-22 pF.
  • To troubleshoot issues with the XR-2206CP, check the power supply voltages, clock signal, and reset circuitry. Also, verify that the device is properly connected and that the input and output signals are within the recommended operating ranges.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XR-2206CP Overview

Use the download button to access the XR-2206CP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR-22, or try a keyword search, such as Analog Waveform Generation Functions
