MaxLinear provides a reference design and layout guidelines in the XR10910IL40-F evaluation board documentation, which can be used as a starting point. Additionally, it's recommended to follow general high-speed PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat.
The XR10910IL40-F has various power-saving features, such as dynamic voltage scaling and clock gating. Engineers can optimize power consumption by adjusting the device's operating frequency, voltage, and clock settings based on their application's requirements. MaxLinear also provides power consumption estimates in the datasheet, which can be used as a starting point for optimization.
The XR10910IL40-F's internal PLL and clocking system can be configured using the device's registers. MaxLinear provides a detailed description of the clocking system and recommended settings in the datasheet and application notes. Engineers can also consult with MaxLinear's technical support team for specific guidance on their application.
To ensure reliable data transmission and reception, engineers should follow proper signal integrity practices, such as using differential signaling, controlling impedance, and minimizing signal reflections. Additionally, the XR10910IL40-F has built-in features, such as 8B/10B encoding and error detection, to help ensure data integrity.
The XR10910IL40-F is specified to operate within a certain temperature range and has specific limitations when operating in harsh environmental conditions. Engineers should consult the datasheet and application notes for detailed information on the device's operating conditions, and consider additional measures, such as thermal management and protection circuits, to ensure reliable operation in their specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR10910IL40-F Overview

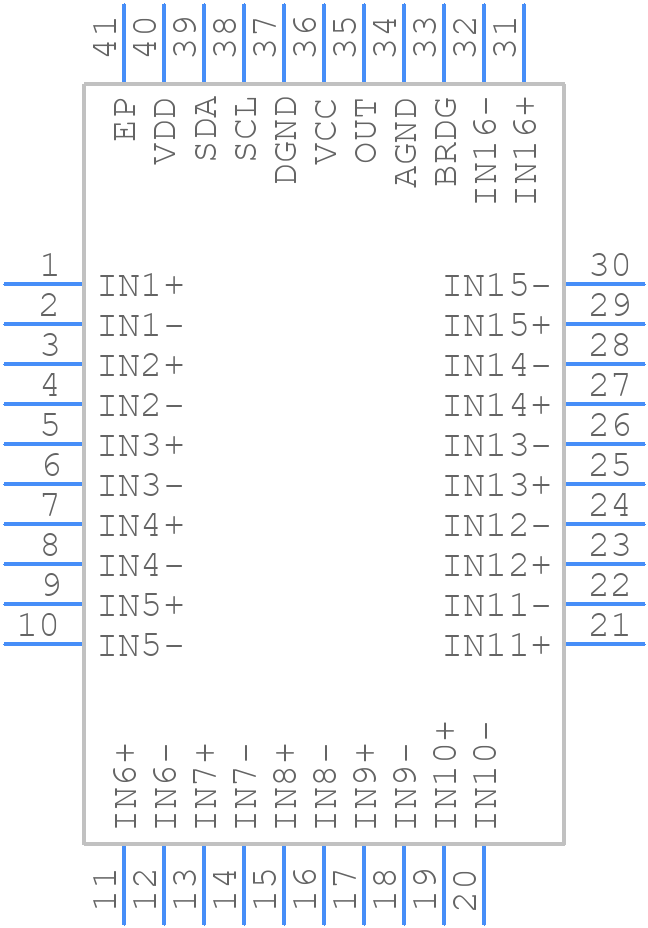

Use the download button to access the XR10910IL40-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR109,
or try a keyword search, such as Other Converters
