- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XR18910IL-67
- Part Number XR18910IL-67
- Manufacturer EXAR
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN-24_1
- Released Date Jan 2, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XR18910IL-67 Details
-
Manufacturer Part Number:
XR18910IL-67
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Exar Corporation
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
XR18910IL-67 Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for XR18910IL-67 is -40°C to +85°C.
-
The XR18910IL-67 can be configured for I2C or SPI interface by setting the appropriate logic levels on the MODE pin. For I2C, the MODE pin should be tied to VCC, and for SPI, it should be tied to GND.
-
The maximum data transfer rate for the XR18910IL-67 is 3.4 Mbps for I2C and 20 Mbps for SPI.
-
The XR18910IL-67 has an internal POR circuit that resets the device during power-up. The POR threshold is typically around 1.5V, and the device is guaranteed to be in a reset state when the supply voltage is below this threshold.
-
The WAKE pin is an active-low input that allows the XR18910IL-67 to wake up from a low-power state. When the WAKE pin is pulled low, the device will exit its low-power state and resume normal operation.
Trust Checks
Expert Contribution
System Verified
Community Approved
XR18910IL-67 Overview

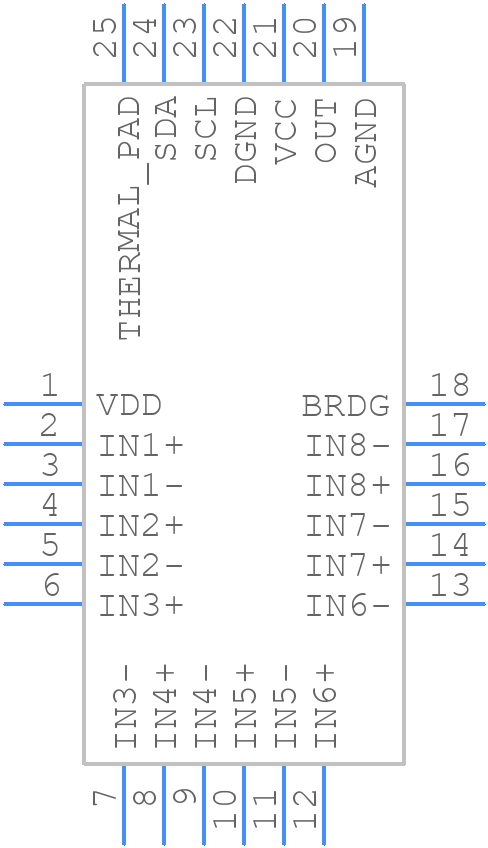

Use the download button to access the XR18910IL-67 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR189,
or try a keyword search, such as Other Signal Circuits
