- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for XR2204
- Part Number XR2204
- Manufacturer Xysemi
- Pin Count 9
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - XR2204-1
- Released Date Mar 15, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
XR2204 Details
-
Manufacturer Part Number:
XR2204
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
XySemi Inc
-
Analog IC - Other Type:
SWITCHING REGULATOR
Trust Checks
Expert Contribution
System Verified
Community Approved
XR2204 Overview

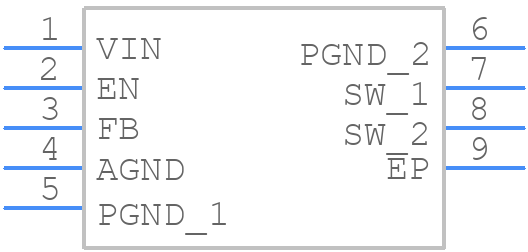

Use the download button to access the XR2204 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR220,
or try a keyword search, such as Switching Regulator or Controllers
