A good PCB layout for the XR22800IL32-F involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper powering and decoupling of the XR22800IL32-F, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the VCC pin, and add additional decoupling capacitors (e.g., 100nF ceramic) near the device. Use a low-dropout regulator (LDO) or a switching regulator with a low noise output to power the device.
The XR22800IL32-F is capable of achieving data transfer rates of up to 921.6 kbps in asynchronous mode and up to 1 Mbps in synchronous mode, depending on the clock frequency and configuration.
The XR22800IL32-F supports RTS/CTS flow control. To implement flow control, connect the RTS (Request to Send) output to the CTS (Clear to Send) input of the remote device, and the CTS output of the remote device to the RTS input of the XR22800IL32-F. This allows the devices to control the flow of data transmission.
The XR22800IL32-F has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device within the recommended operating temperature range (–40°C to 85°C) and provide adequate heat dissipation, such as a heat sink or thermal pad, especially in high-power or high-temperature applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XR22800IL32-F Overview

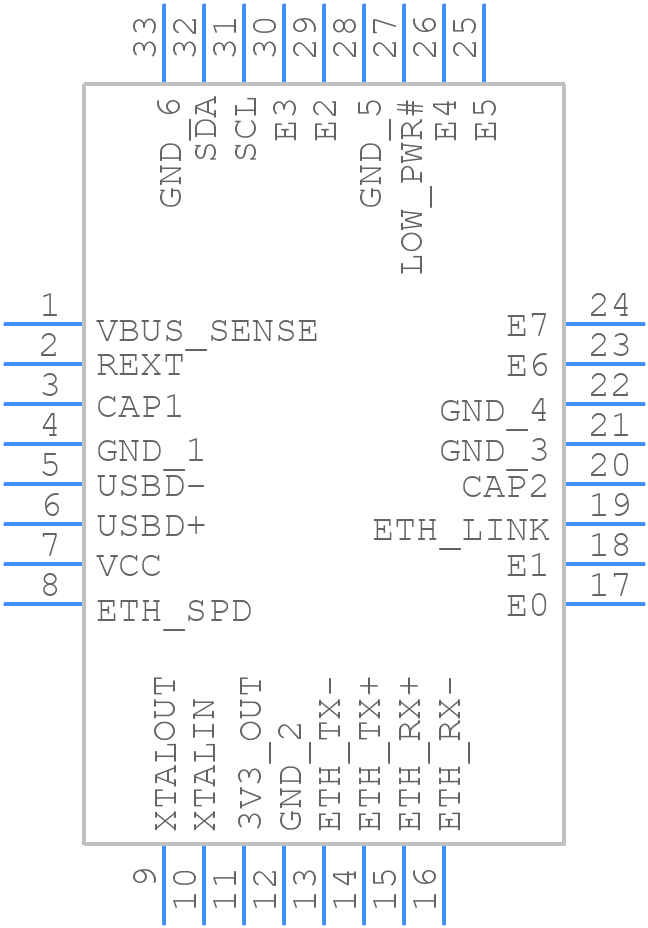

Use the download button to access the XR22800IL32-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XR228,
or try a keyword search, such as Bus Controllers
