MaxLinear provides a reference design guide and layout recommendations in their application notes and evaluation boards. It's essential to follow these guidelines to ensure proper thermal management and minimize noise coupling.
The device requires a well-regulated power supply with low noise and ripple. A recommended approach is to use a multi-layer PCB with separate power and ground planes, and to decouple the power supply lines with capacitors close to the device.
The XRA1200PIG16TR-F is commonly used in high-speed data acquisition systems, such as medical imaging, industrial automation, and high-speed data converters. It's also used in applications requiring low-power consumption and high integration, like IoT devices and battery-powered systems.
MaxLinear provides a troubleshooting guide in their application notes, which covers common issues and their solutions. Additionally, engineers can use simulation tools like IBIS models and signal integrity analysis software to identify and mitigate potential issues.
The XRA1200PIG16TR-F is sensitive to temperature, humidity, and power supply variations. Operating conditions like temperature range, power supply voltage, and clock frequency can impact the device's performance and reliability. Engineers should ensure that the device operates within the recommended specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XRA1200PIG16TR-F Overview

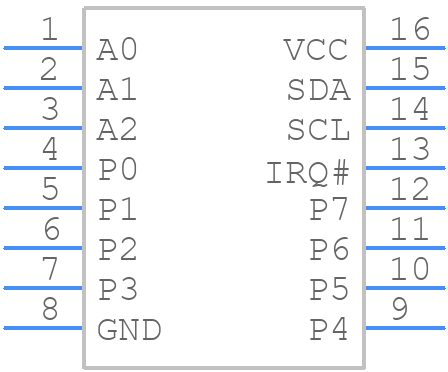

Use the download button to access the XRA1200PIG16TR-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XRA12,
or try a keyword search, such as Parallel IO Ports
