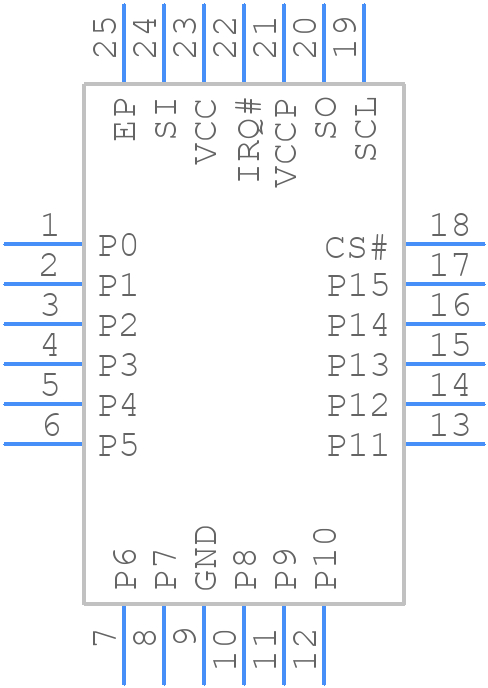

XRA1405IL24-F - MaxLinear, Inc.

Description: Interface - I/O Expanders 16 Bit SPI GPIO Expander

Download XRA1405IL24-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XRA1405IL24-F - MaxLinear, Inc. PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - XRA1405IL24-F-1
click to zoom
3D Models
XRA1405IL24-F - MaxLinear, Inc.  - 3D model - Quad Flat No-Lead - XRA1405IL24-F-1
click to zoom

XRA1405IL24-F Details

  • Manufacturer Part Number:

    XRA1405IL24-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    MaxLinear Inc

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Matte Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

XRA1405IL24-F Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce EMI.
  • Use a low-ESR capacitor (e.g., 10uF) for power decoupling, and place it as close to the device as possible. Ensure the power supply is stable and within the recommended voltage range (1.8V to 3.6V).
  • The recommended clock frequency is 25MHz, and a crystal oscillator or a high-quality clock source is recommended. Ensure the clock signal is clean and has minimal jitter.
  • Use the power-down mode (PD) to reduce power consumption when the device is not in use. Also, adjust the clock frequency and voltage regulator settings to minimize power consumption.
  • The XRA1405IL24-F supports SPI, I2C, and I2S interfaces. Choose the interface that best suits your system requirements, and ensure proper signal termination and routing.
