XRA1405IL24TR-F - MaxLinear, Inc.

Description: Interface - I/O Expanders 16 Bit SPI GPIO Expander

Download XRA1405IL24TR-F Model

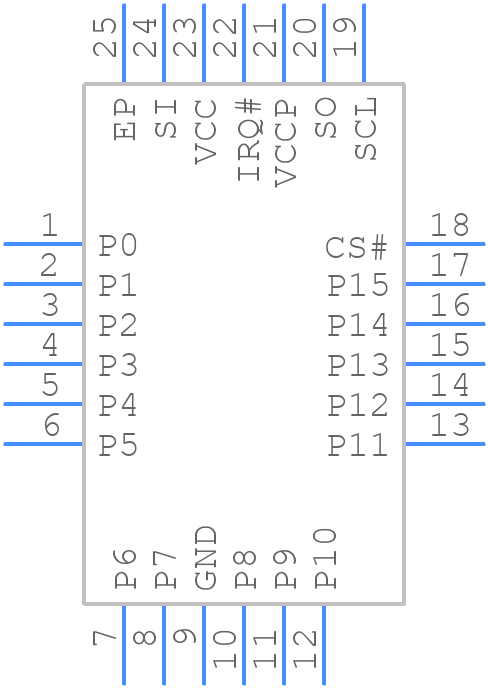

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XRA1405IL24TR-F - MaxLinear, Inc. PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (24 PIN QFN - 4 X 4 X 0.9 mm
click to zoom
3D Models
XRA1405IL24TR-F - MaxLinear, Inc.  - 3D model - Quad Flat No-Lead - (24 PIN QFN - 4 X 4 X 0.9 mm
click to zoom

XRA1405IL24TR-F Details

  • Manufacturer Part Number:

    XRA1405IL24TR-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    MaxLinear Inc

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Matte Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

XRA1405IL24TR-F Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Use a pi-network or a T-network topology with a 50-ohm characteristic impedance. Optimize the component values using a simulation tool or a network analyzer for maximum power transfer.
  • Power up the device with a slow voltage ramp-up time (e.g., 1-2 ms) to prevent latch-up. Ensure the supply voltage reaches its nominal value before enabling the device.
  • Use a TVS diode or a transient voltage suppressor (TVS) array with a standoff voltage of 3.3V or 5V, depending on the application. Ensure the ESD protection device is placed close to the XRA1405IL24TR-F.
  • The recommended operating temperature range is -40°C to 85°C. Performance may degrade above 85°C, and the device may shut down above 125°C. Ensure proper thermal management to maintain optimal performance.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

XRA1405IL24TR-F Overview

Use the download button to access the XRA1405IL24TR-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XRA14, or try a keyword search, such as Parallel IO Ports
