XRCFD25M000F2N51R0 - Murata Electronics

Description: Crystals 25.0MHz +/-20ppm, -40℃~125℃, 300ohm max., 30μW (100μW max.), 1.6x1.2mm

Download XRCFD25M000F2N51R0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

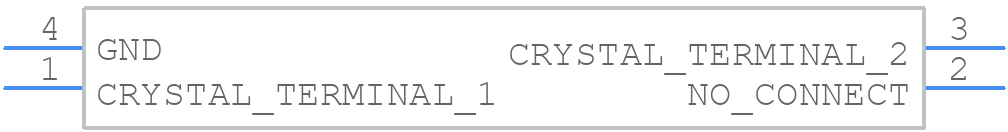

XRCFD25M000F2N51R0 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
XRCFD25M000F2N51R0 - Murata Electronics PCB footprint - Other - Other - XRCFD25M000F2N51R0-1
click to zoom
3D Models
XRCFD25M000F2N51R0 - Murata Electronics - 3D model - Other - XRCFD25M000F2N51R0-1
click to zoom

XRCFD25M000F2N51R0 Details

  • Manufacturer Part Number:

    XRCFD25M000F2N51R0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD, 4 PIN

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.60.00.60

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    TR, PLASTIC, 7 INCH

  • Aging:

    2 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    30 µW

  • Frequency Stability:

    0.005%

  • Frequency Tolerance:

    20 ppm

  • Load Capacitance:

    5 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    25 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    L1.6XB1.2XH0.35 (mm)/L0.063XB0.047XH0.014 (inch)

  • Series Resistance:

    300 Ω

  • Surface Mount:

    YES

XRCFD25M000F2N51R0 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 250°C to 260°C, with a maximum temperature of 280°C for a maximum of 10 seconds.
  • Yes, the XRCFD25M000F2N51R0 is designed for high-frequency applications, with a self-resonant frequency of around 1.5 GHz.
  • The maximum operating voltage derating is 80% of the rated voltage, which is 25V for this capacitor.
  • The XRCFD25M000F2N51R0 is designed to be resistant to moisture and humidity, with a moisture sensitivity level of 3, according to the IPC/JEDEC J-STD-020 standard.
  • The ESR of the XRCFD25M000F2N51R0 is approximately 0.05 ohms at 100 kHz.
