Technical Content
Part Image

XRCTD37M400FXQ50R0 - Murata Electronics

Description: MURATA - XRCTD37M400FXQ50R0 - Crystal, 37.4 MHz, SMD, 1.2mm x 1mm, 6 pF, 20 ppm, XRCTD Series

Download XRCTD37M400FXQ50R0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

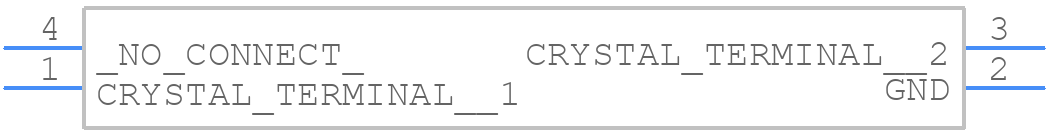

XRCTD37M400FXQ50R0 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
XRCTD37M400FXQ50R0 - Murata Electronics PCB footprint - Other - Other - XRCTD37M400FXQ50R0-2
click to zoom
3D Models
XRCTD37M400FXQ50R0 - Murata Electronics - 3D model - Other - XRCTD37M400FXQ50R0-2
click to zoom

XRCTD37M400FXQ50R0 Details

  • Manufacturer Part Number:

    XRCTD37M400FXQ50R0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD, 4 PIN

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.60.00.60

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    TR, PLASTIC, 7 INCH

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Tolerance (MHz):

    20

  • Load Capacitance:

    6 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    37.4 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Physical Dimension:

    L1.2XB1.0XH0.3 (mm)/L0.047XB0.039XH0.012 (inch)

  • Series Resistance:

    60 Ω

  • Surface Mount:

    YES

XRCTD37M400FXQ50R0 Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 2.5mm x 1.5mm, and a spacing of 1.5mm between pads. A detailed land pattern can be found in the Murata's recommended land pattern document.
  • Handle the component by the edges, avoid touching the terminals, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Also, ensure the assembly process follows the recommended reflow soldering profile.
  • The maximum operating temperature range for XRCTD37M400FXQ50R0 is -40°C to +125°C. However, the component's performance and reliability may degrade if operated at the extreme ends of this range for an extended period.
  • Yes, the XRCTD37M400FXQ50R0 is designed to withstand vibrations up to 10G (10 Hz to 2 kHz). However, it's essential to ensure the component is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • Store the components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. The recommended storage conditions are -10°C to +30°C, with a relative humidity of 60% or less.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XRCTD37M400FXQ50R0 Overview

Use the download button to access the XRCTD37M400FXQ50R0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XRCTD, or try a keyword search, such as Quartz Crystals

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
