Part Image

XRP6272IDBTR-F - EXAR

Description: LDO Regulator 5V-Adj 2A Low IQ HSOIC8EP

Download XRP6272IDBTR-F Model

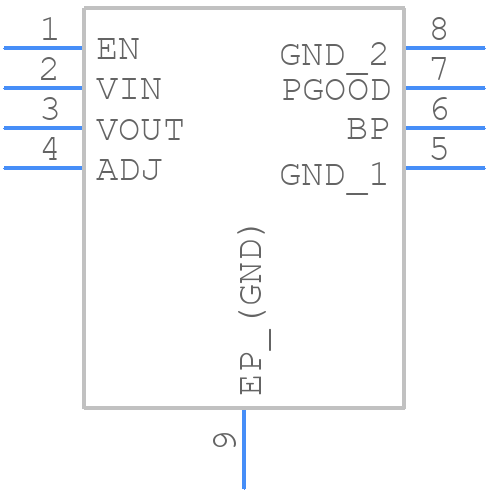

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XRP6272IDBTR-F - EXAR PCB footprint - Small Outline Packages - Small Outline Packages - 8 Pin HSOIC
click to zoom
3D Models
XRP6272IDBTR-F - EXAR  - 3D model - Small Outline Packages - 8 Pin HSOIC
click to zoom

XRP6272IDBTR-F Details

  • Manufacturer Part Number:

    XRP6272IDBTR-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, MS-012E, SOIC-8

  • Pin Count:

    8

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Exar Corporation

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.9 V

  • Dropout Voltage1-Nom:

    0.48 V

  • Input Voltage Absolute-Max:

    7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.015%

  • Load Regulation-Max:

    0.015%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XRP6272IDBTR-F Overview

Use the download button to access the XRP6272IDBTR-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XRP62, or try a keyword search, such as Linear Regulator ICs
