For optimal performance, it is recommended to use a symmetrical PCB layout, with the input and output clocks routed as close to the device as possible. Additionally, use a solid ground plane and decouple the power supply with a 0.1uF capacitor.
To ensure proper power-up, make sure to sequence the power supply voltage (VCC) and the input clock signal. Apply VCC first, and then the input clock signal. This ensures the device is properly initialized and configured.
The maximum capacitance load for the output clocks is 30pF. Exceeding this value may affect the device's performance and signal integrity.
Yes, the XRP6840BILB-F can be used in systems with multiple clock domains. However, ensure that the input clock signal is properly synchronized and aligned with the target clock domain to avoid clock domain crossing issues.
The XRP6840BILB-F has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or a thermal pad on the PCB, and ensure good airflow around the device.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
XRP6840BILB-F Overview

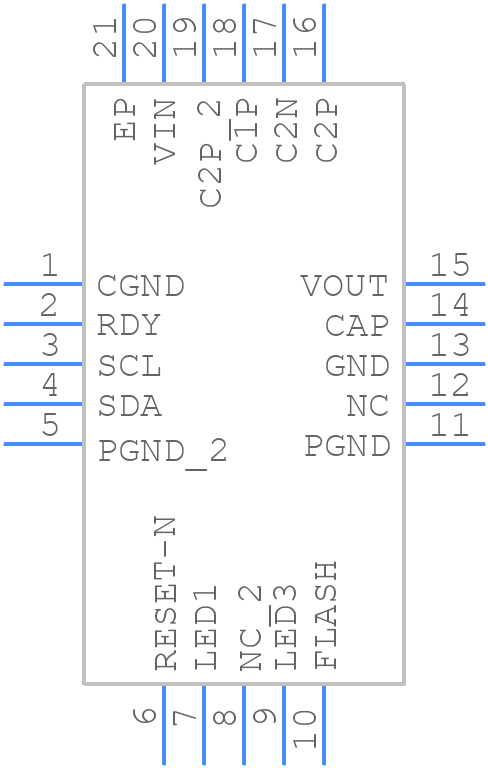

Use the download button to access the XRP6840BILB-F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XRP68,
or try a keyword search, such as Display Drivers
