A good PCB layout for the XRP7713ILB-F involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Exar Corporation provides a recommended PCB layout in their application notes.
To ensure proper power-up and initialization, follow the power-up sequence outlined in the datasheet, and make sure the input voltage is within the recommended range. Also, ensure that the EN pin is properly driven to enable the device.
The XRP7713ILB-F has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and follow the thermal design guidelines provided in the datasheet.
Yes, the XRP7713ILB-F is suitable for high-reliability and high-availability applications. Exar Corporation provides a range of reliability and quality data, including FIT rates and MTBF calculations, to support such applications.
To troubleshoot issues with the XRP7713ILB-F, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly configured and that the PCB layout is correct. Consult the datasheet and application notes for troubleshooting guidelines and common error scenarios.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
XRP7713ILB-F Overview

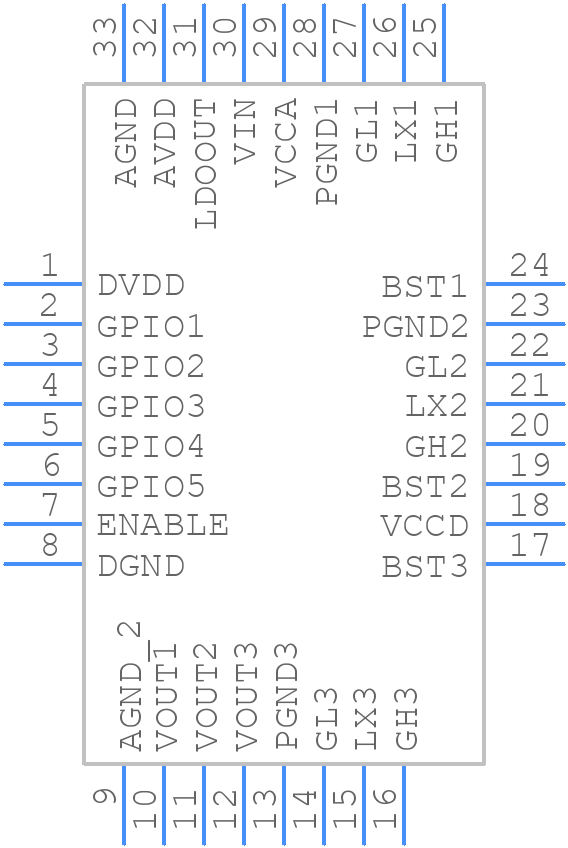

Use the download button to access the XRP7713ILB-F schematic symbol and PCB footprint.
