MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to ensure efficient heat dissipation. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to facilitate heat transfer.
The XX1000-QT-0G0T requires a bias voltage of 5V ± 10% and a bias current of 100 mA ± 10%. Ensure the bias circuitry is designed to provide a stable voltage and current, and that the device is operated within the recommended operating conditions.
MACOM recommends using a pi-network topology for input and output matching, with component values optimized for the specific application frequency range. A 50-ohm system impedance is assumed, and the device should be matched for maximum power transfer.
The XX1000-QT-0G0T is an ESD-sensitive device. MACOM recommends using ESD protection diodes or TVS diodes on the input and output lines, and following proper ESD handling procedures during assembly and testing.
The XX1000-QT-0G0T is designed to meet high-reliability standards, with a typical MTBF of 100,000 hours at 40°C. However, actual reliability and MTBF will depend on the specific application, operating conditions, and quality of the PCB assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XX1000-QT-0G0T Overview

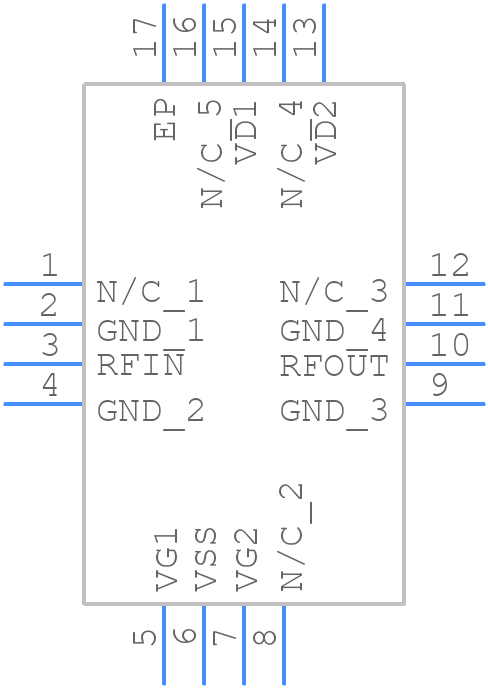

Use the download button to access the XX1000-QT-0G0T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XX100,
or try a keyword search, such as RF/Microwave Frequency Multipliers
