MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to ensure efficient heat dissipation. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat.
The XX1002-QH-0G0T requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly terminated to prevent oscillations.
MACOM recommends using a pi-network or a T-network for input and output matching. The specific component values will depend on the application and frequency of operation. Consult the MACOM application note for more information.
The XX1002-QH-0G0T is sensitive to ESD. Handle the device with an ESD wrist strap or mat, and ensure the PCB is designed with ESD protection in mind. Use ESD-sensitive handling and storage procedures to prevent damage.
MACOM provides reliability data in the datasheet, including MTBF estimates. The device is designed to meet high-reliability standards, but the actual MTBF will depend on the application, operating conditions, and quality of the PCB assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XX1002-QH-0G0T Overview

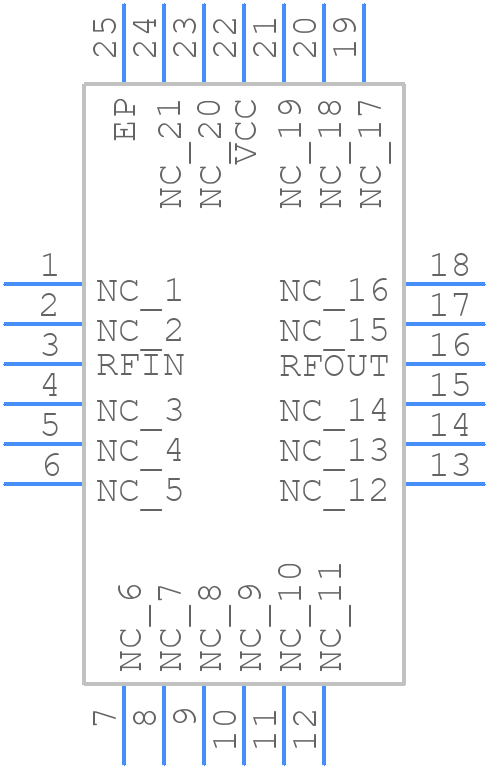

Use the download button to access the XX1002-QH-0G0T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XX100,
or try a keyword search, such as RF/Microwave Frequency Multipliers
