The recommended operating temperature range for the XZFBBM2ACRDG92W-3 is -40°C to 100°C.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the LED pads. Hold the iron 1-2 mm above the pad for 2-3 seconds to allow the solder to flow.
The maximum forward current rating for the XZFBBM2ACRDG92W-3 is 30mA. Exceeding this rating may reduce the LED's lifespan or cause damage.
Handle the LED by the edges or the epoxy resin body to prevent damage to the leads or the chip. Avoid touching the leads or the chip with bare hands, as the oils from skin can cause damage.
Store the XZFBBM2ACRDG92W-3 in a dry, cool place with a relative humidity of 60% or less, and at a temperature range of 10°C to 30°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XZFBBM2ACRDG92W-3 Overview

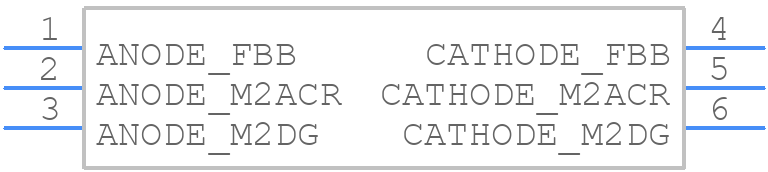

Use the download button to access the XZFBBM2ACRDG92W-3 schematic symbol, PCB footprint, and 3D model.
