Part Image

XZP211FS - ZIMC

Description: 1.8V、2.5V、3.3V 100BASE-TX、1000BASE-T、10BASE-TE 10Mbit/s、100Mbit/s、1Gbit/s Ethernet Transceiver SGMII、RGMII QFN-48(6x6) Ethernet Transceivers ROHS

Download XZP211FS Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this XZP211FS model

Email notifications will be applied after download.

Send part feedback

Symbol

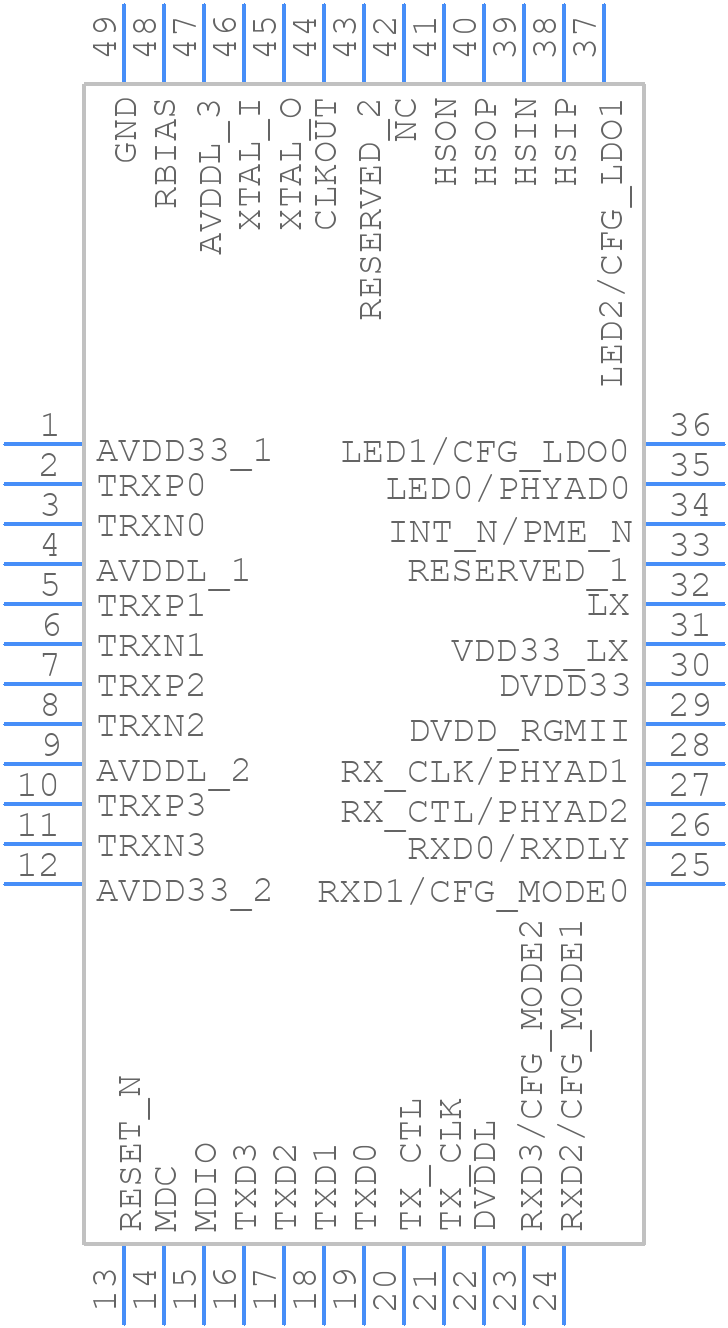

XZP211FS - ZIMC - PCB symbol

PCB Footprints

XZP211FS - ZIMC PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48

Datasheet Download Datasheet
Stock & Prices Price & Stock for XZP211FS
Part Number XZP211FS
Manufacturer ZIMC
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN48
Released Date May 17, 2026
Last Modified Date May 17, 2026 3:45 AM UTC
Pinout / Pin List Click Here (Member Only)

XZP211FS Details

Manufacturer Part Number:
XZP211FS
Manufacturer:
(UNAVAILABLE)

Trust Checks

Community Provided

System Verified

Community Approved

XZP211FS Overview

Use the download button to access the XZP211FS schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like XZP21, or try a keyword search, such as Visible LEDs
