Y-D1R - LEACH

Description: Power/Signal Relay, 4PDT, Momentary, 0.12A (Coil), 12VDC (Coil), 1440mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount

Download Y-D1R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this Y-D1R model

Email notifications will be applied after download.

Send part feedback

Symbol

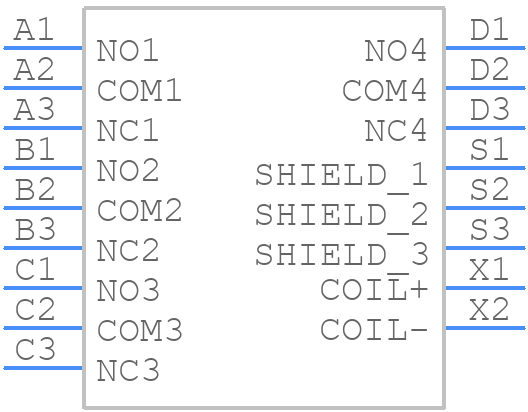

Y-D1R - LEACH - PCB symbol

PCB Footprints

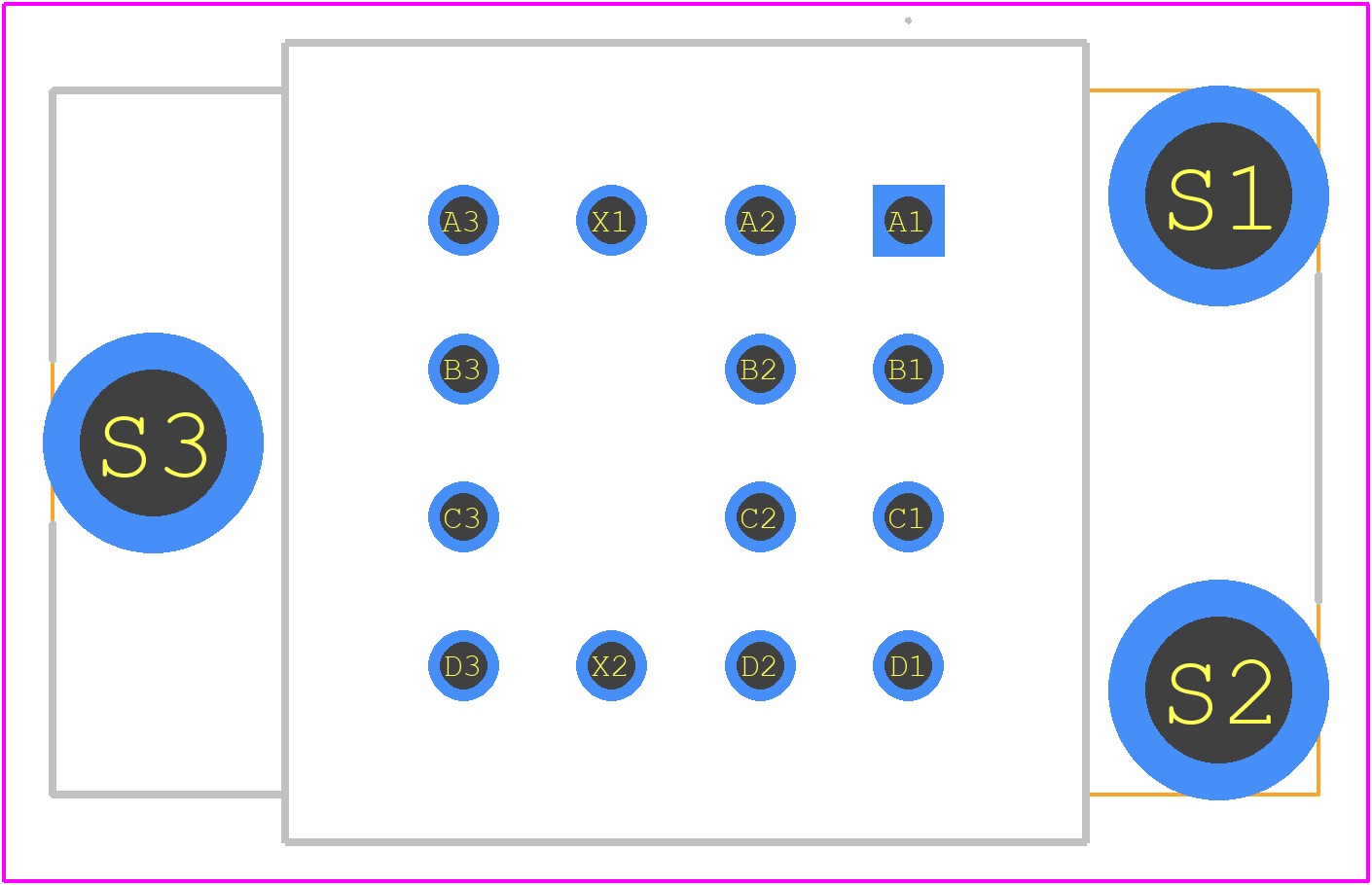

Y-D1R - LEACH PCB footprint - Other - Other - Y-D1R-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for Y-D1R
Part Number Y-D1R
Manufacturer LEACH
Pin Count 17
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - Y-D1R-3
Released Date Jul 7, 2025
Last Modified Date Dec 4, 2025 1:28 AM UTC
