Y31A41477FP LFS - LITTELFUSE

Description: SWITCH TACTILE SPST-NO 0.05A 32V 300000Cycles Gull Wing 4N SMD T/R

Download Y31A41477FP LFS Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this Y31A41477FP LFS model

Email notifications will be applied after download.

Send part feedback

Symbol

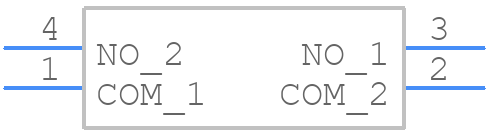

Y31A41477FP LFS - LITTELFUSE - PCB symbol

PCB Footprints

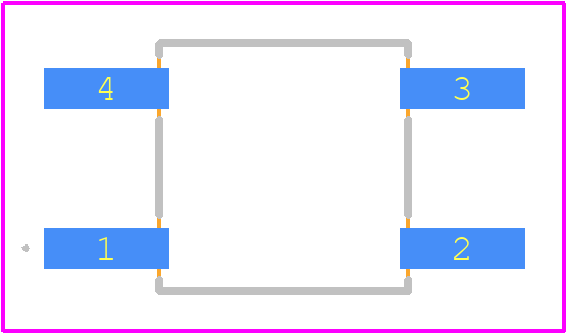

Y31A41477FP LFS - LITTELFUSE PCB footprint - Other - Other - Y31A41477FP LFS-1

3D Models

Y31A41477FP LFS - LITTELFUSE - 3D model - Other - Y31A41477FP LFS-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for Y31A41477FP LFS
Part Number Y31A41477FP LFS
Manufacturer LITTELFUSE
Pin Count 4
Part Category Switch
Package Category Other
Footprint Name Other - Y31A41477FP LFS-1
Released Date Feb 7, 2022
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

Y31A41477FP LFS Details

Manufacturer Part Number:
Y31A41477FP LFS
Manufacturer:
Littelfuse Inc

Trust Checks

Community Provided

System Verified

Community Approved

Y31A41477FP LFS Overview

Use the download button to access the Y31A41477FP LFS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like Y31A4, or try a keyword search, such as Keypad Switches
