Part Image

Y71243231FP - LITTELFUSE

Description: Tactile Switch SPDT Side Actuated Through Hole, Right Angle -40°C ~ 85°C,0.1A 32V

Download Y71243231FP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this Y71243231FP model

Email notifications will be applied after download.

Send part feedback

Symbol

Y71243231FP - LITTELFUSE - PCB symbol

PCB Footprints

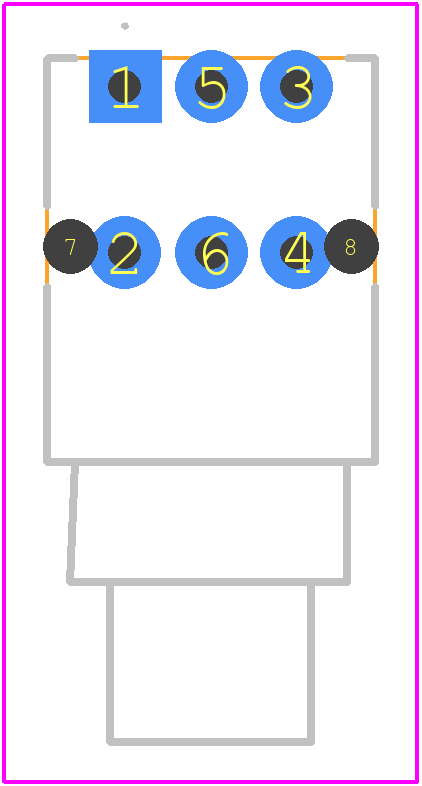

Y71243231FP - LITTELFUSE PCB footprint - Other - Other - Y71243231FP-2

3D Models

Y71243231FP - LITTELFUSE - 3D model - Other - Y71243231FP-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for Y71243231FP
Part Number Y71243231FP
Manufacturer LITTELFUSE
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - Y71243231FP-2
Released Date Sep 12, 2025
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

Y71243231FP Details

Manufacturer Part Number:
Y71243231FP
Manufacturer:
Littelfuse Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

Y71243231FP Overview

Use the download button to access the Y71243231FP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like Y7124, or try a keyword search, such as Fixed Resistors
