Y8848-AL - COILCRAFT

Description: Audio Transformers / Signal Transformers Y8848 For NCP1202 10uH 12 V .83 A

Download Y8848-AL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

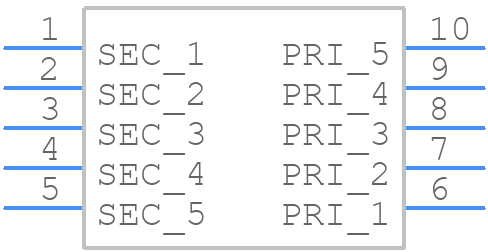

Y8848-AL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

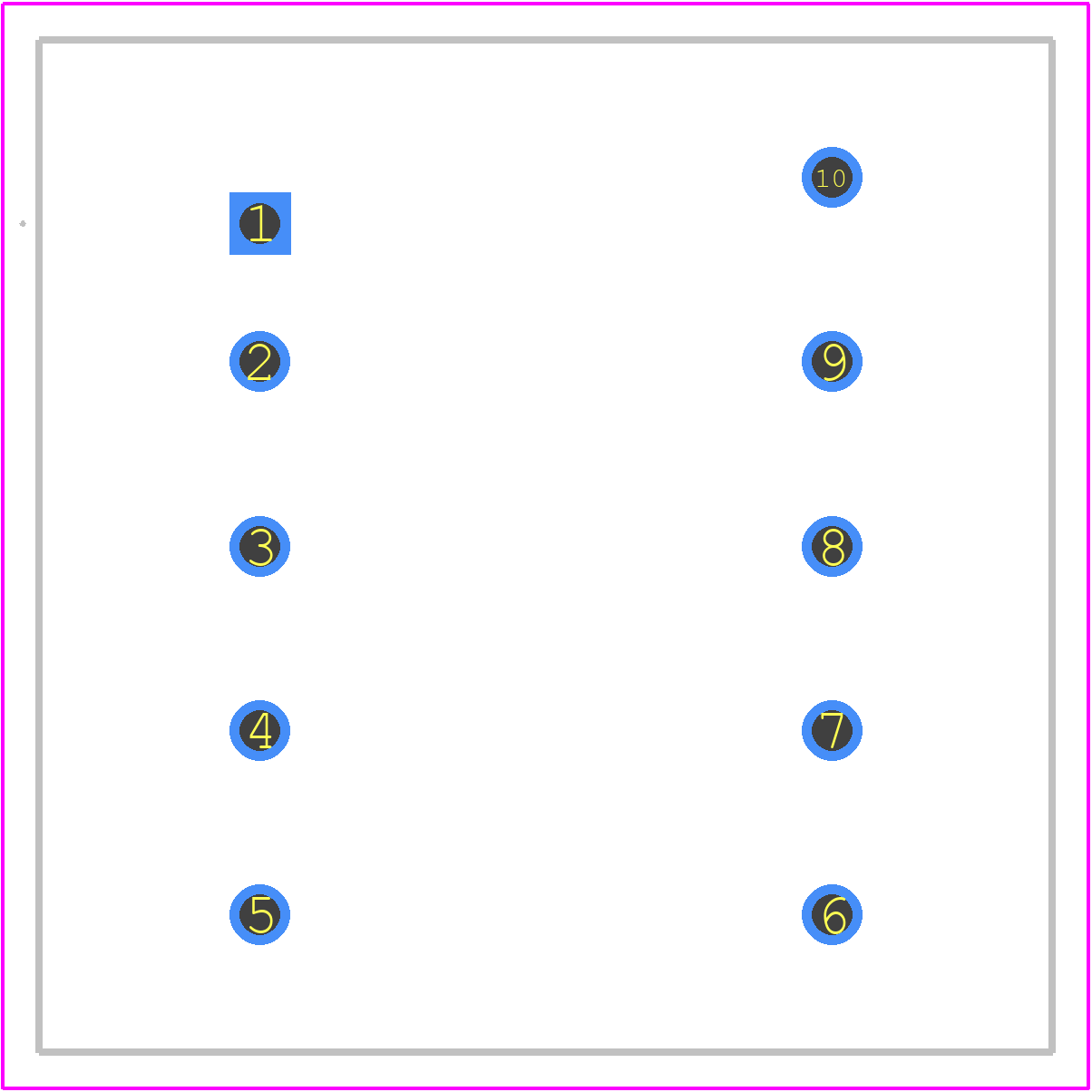

Y8848-AL - COILCRAFT PCB footprint - Other - Other - Y8848-AL-1
click to zoom
3D Models
Y8848-AL - COILCRAFT - 3D model - Other - Y8848-AL-1
click to zoom

Y8848-AL Details

  • Manufacturer Part Number:

    Y8848-AL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.05

  • Additional Feature:

    TURNS RATIO: 1:0.10

  • Height:

    24.13 mm

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • JESD-609 Code:

    e2

  • Length:

    27.84 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    100 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Power Rating:

    10 W

  • Primary Inductance:

    1800 µH

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    27.94 mm

Y8848-AL Frequently Asked Questions (FAQs)

  • Coilcraft recommends a land pattern with a pad size of 1.3 mm x 1.3 mm and a spacing of 0.5 mm between pads. The recommended land pattern is available on Coilcraft's website.
  • Yes, Y8848-AL is rated for operation up to 155°C. However, the inductor's performance may degrade at high temperatures, and the maximum operating temperature should be derated based on the specific application.
  • Y8848-AL is sensitive to mechanical stress, which can cause the inductor's performance to degrade. To minimize the effects of mechanical stress, it is recommended to handle the inductor by the edges, avoid bending or flexing the leads, and use a stress-relieving mounting method.
  • Coilcraft recommends a soldering profile with a peak temperature of 260°C and a dwell time of 10-30 seconds. The soldering profile should be optimized to minimize thermal shock and prevent damage to the inductor.
  • Yes, Y8848-AL is designed for high-frequency applications up to 1 GHz. However, the inductor's performance may degrade at very high frequencies, and the user should verify the inductor's performance in their specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

Y8848-AL Overview

Use the download button to access the Y8848-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Y8848, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
