YAC512-M - Yamaha

Description: Digital Analog Converter, Single, 16 Bit, 16 Pin, SOP

Download YAC512-M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

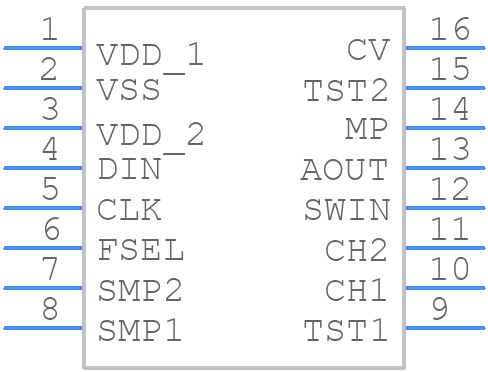

Symbol
YAC512-M - Yamaha - PCB symbol
click to zoom
PCB Footprints
YAC512-M - Yamaha PCB footprint - Small Outline Packages - Small Outline Packages - YAC512-M-AP
click to zoom
3D Models
YAC512-M - Yamaha - 3D model - Small Outline Packages - YAC512-M-AP
click to zoom

YAC512-M Details

  • Manufacturer Part Number:

    YAC512-M

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Yamaha LSI

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    10.2 mm

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.3 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

YAC512-M Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • The clock signal should be a stable, low-jitter signal with a frequency of 12.288 MHz. A clock signal with a duty cycle of 50% is recommended for optimal performance.
  • The maximum allowable capacitance for the analog power supply pins is 10 uF. Exceeding this value may affect the device's performance and stability.
  • The analog and digital ground pins should be connected to separate ground planes on the PCB, and then connected to a single system ground point. This ensures proper noise isolation and minimizes ground bounce.
  • The recommended operating temperature range for the YAC512-M is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.
