- Part Number YAT-30A+
- Manufacturer Mini-Circuits
- Pin Count 7
- Part Category Attenuator or Isolator
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1630
- Released Date Feb 5, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
YAT-30A+ Details
-
Manufacturer Part Number:
YAT-30A+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
Attenuation-Nom:
29.97 dB
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
30 dBm
-
JESD-609 Code:
e3
YAT-30A+ Frequently Asked Questions (FAQs)
-
A good grounding scheme is crucial for the YAT-30A+. It's recommended to use a solid ground plane on the PCB, and to connect the amplifier's ground pins to the ground plane using vias. Additionally, keep the input and output traces as short as possible and use 50-ohm transmission lines to minimize reflections.
-
The YAT-30A+ is a self-biased amplifier, but it's still important to ensure the correct voltage supply and current limiting resistors are used. Follow the recommended voltage supply range (12-15V) and use the recommended current limiting resistors (1kΩ) to ensure stable operation.
-
The YAT-30A+ can handle input powers up to +10 dBm, but it's recommended to keep the input power below +5 dBm to ensure optimal performance and prevent damage to the amplifier.
-
The YAT-30A+ is a broadband amplifier, but its performance can be optimized for specific frequency ranges by using external matching networks or tuning the input/output impedance. Consult the datasheet and application notes for guidance on optimizing the amplifier's performance for your specific frequency range.
-
The YAT-30A+ is rated for operation from -40°C to +85°C, but its performance may degrade at extreme temperatures. Ensure the amplifier is operated within the recommended temperature range for optimal performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
YAT-30A+ Overview

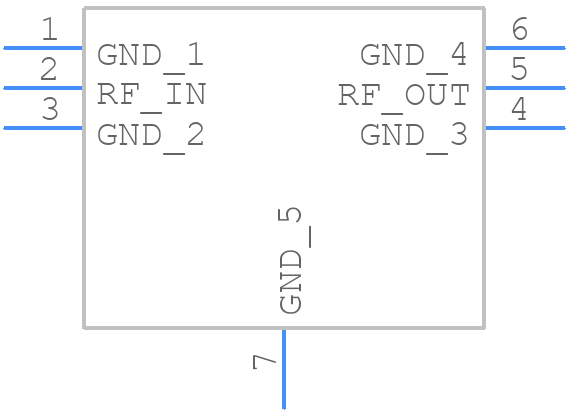

Use the download button to access the YAT-30A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YAT-3,
or try a keyword search, such as RF/Microwave Attenuators
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
