YAT-3A+ - Mini-Circuits

Description: Attenuators 3 dB SMT Fixed Attenuator, DC - 18000 MHz, 50?

Download YAT-3A+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

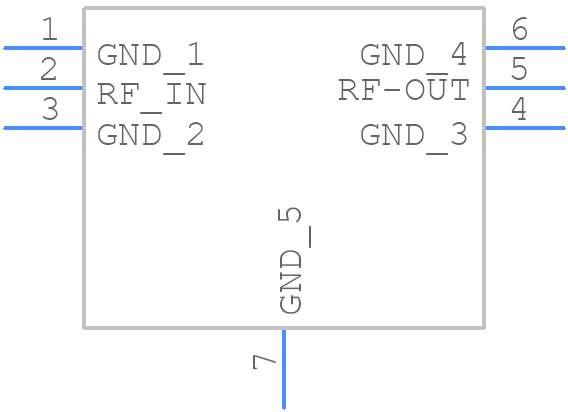

YAT-3A+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
YAT-3A+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1630
click to zoom
3D Models
YAT-3A+ - Mini-Circuits - 3D model - Small Outline No-lead - MC1630
click to zoom

YAT-3A+ Details

  • Manufacturer Part Number:

    YAT-3A+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation-Nom:

    2.9 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    18000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.9

YAT-3A+ Frequently Asked Questions (FAQs)

  • The maximum input power that the YAT-3A+ can handle is +10 dBm. Exceeding this limit may cause damage to the amplifier.
  • The YAT-3A+ has a 50 ohm input and output impedance. To impedance match, use a 50 ohm coaxial cable and ensure that your system's impedance is also 50 ohms.
  • The operating temperature range of the YAT-3A+ is -40°C to +85°C. Operating outside this range may affect the amplifier's performance and reliability.
  • The YAT-3A+ is not hermetically sealed, so it's not recommended for use in high-humidity environments. If you must use it in a humid environment, ensure that it's properly sealed and conformally coated.
  • The typical current consumption of the YAT-3A+ is 420 mA at +12V DC. This may vary depending on the input power and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

YAT-3A+ Overview

Use the download button to access the YAT-3A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YAT-3, or try a keyword search, such as RF/Microwave Attenuators

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
