The recommended land pattern for YC248-FR-0749R9L is a rectangular pad with a size of 1.2mm x 0.8mm, with a solder mask clearance of 0.1mm. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent defects.
While YC248-FR-0749R9L is rated for operation up to 125°C, it's not recommended for high-temperature applications above 150°C. Prolonged exposure to high temperatures can affect the resistor's performance, stability, and lifespan. If high-temperature operation is required, consider using a more suitable component.
YC248-FR-0749R9L is designed to operate in environments with relative humidity up to 80%. However, it's essential to follow proper storage and handling procedures to prevent moisture absorption. If the component is exposed to high humidity, it's recommended to bake it at 125°C for 24 hours to remove any absorbed moisture.
Yes, YC248-FR-0749R9L is compatible with lead-free soldering processes. The component is designed to withstand the higher temperatures associated with lead-free soldering, and its materials are compliant with RoHS and REACH regulations.
It's recommended to use a mild cleaning process, such as isopropyl alcohol (IPA) or a gentle solvent, to clean YC248-FR-0749R9L. Avoid using harsh chemicals, abrasive materials, or high-pressure cleaning methods, as they can damage the component's surface or compromise its performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
YC248-FR-0749R9L Overview

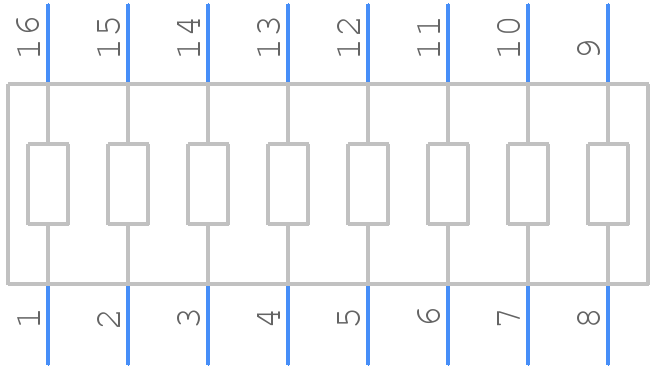

Use the download button to access the YC248-FR-0749R9L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YC248,
or try a keyword search, such as Array/Network Resistors
