YFF31AH2A105MT0Y0N - TDK

Description: 3-terminal Filters, Insertion Loss=40dB (0.8MHz to 2000MHz), LxWxT: 3.2x1.6x1.3mm

Download YFF31AH2A105MT0Y0N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

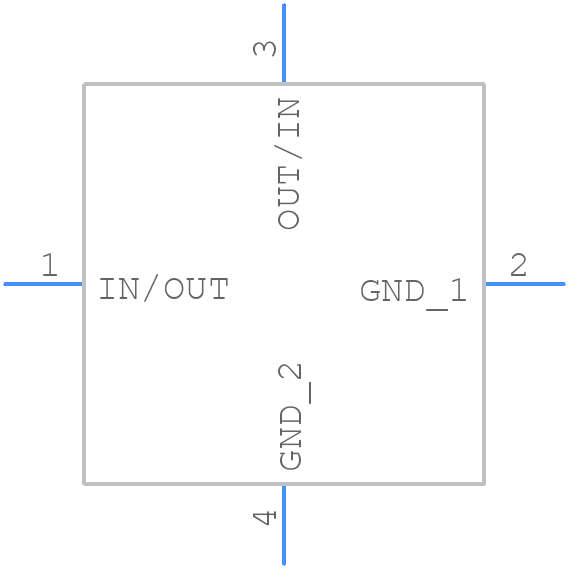

YFF31AH2A105MT0Y0N - TDK - PCB symbol
click to zoom
PCB Footprints
YFF31AH2A105MT0Y0N - TDK PCB footprint - Other - Other - YFF31AH2A105MT0Y0N-4
click to zoom
3D Models
YFF31AH2A105MT0Y0N - TDK - 3D model - Other - YFF31AH2A105MT0Y0N-4
click to zoom

YFF31AH2A105MT0Y0N Details

  • Manufacturer Part Number:

    YFF31AH2A105MT0Y0N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Capacitance:

    1000000 µF

  • Filter Type:

    FEED THROUGH CAPACITOR

  • Height:

    1.3 mm

  • JESD-609 Code:

    e3

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    4 A

  • Rated Voltage:

    100 V

  • Screening Level:

    AEC-Q200

  • Terminal Finish:

    TIN OVER NICKEL

  • Width:

    1.6 mm

YFF31AH2A105MT0Y0N Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the YFF31AH2A105MT0Y0N capacitor is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the YFF31AH2A105MT0Y0N capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • The YFF31AH2A105MT0Y0N capacitor is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings at higher temperatures to ensure reliability.
  • The recommended land pattern for the YFF31AH2A105MT0Y0N capacitor is a rectangular pad with a size of 3.2mm x 1.6mm, with a solder mask clearance of 0.2mm.
  • Yes, the YFF31AH2A105MT0Y0N capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

YFF31AH2A105MT0Y0N Overview

Use the download button to access the YFF31AH2A105MT0Y0N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YFF31, or try a keyword search, such as Data Line Filters
