YK4410403000G - Amphenol

Description: 4 Circuit 0.374" (9.50mm) Barrier Block Connector Screws with Captive Plate

Download YK4410403000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
YK4410403000G - Amphenol - PCB symbol
click to zoom

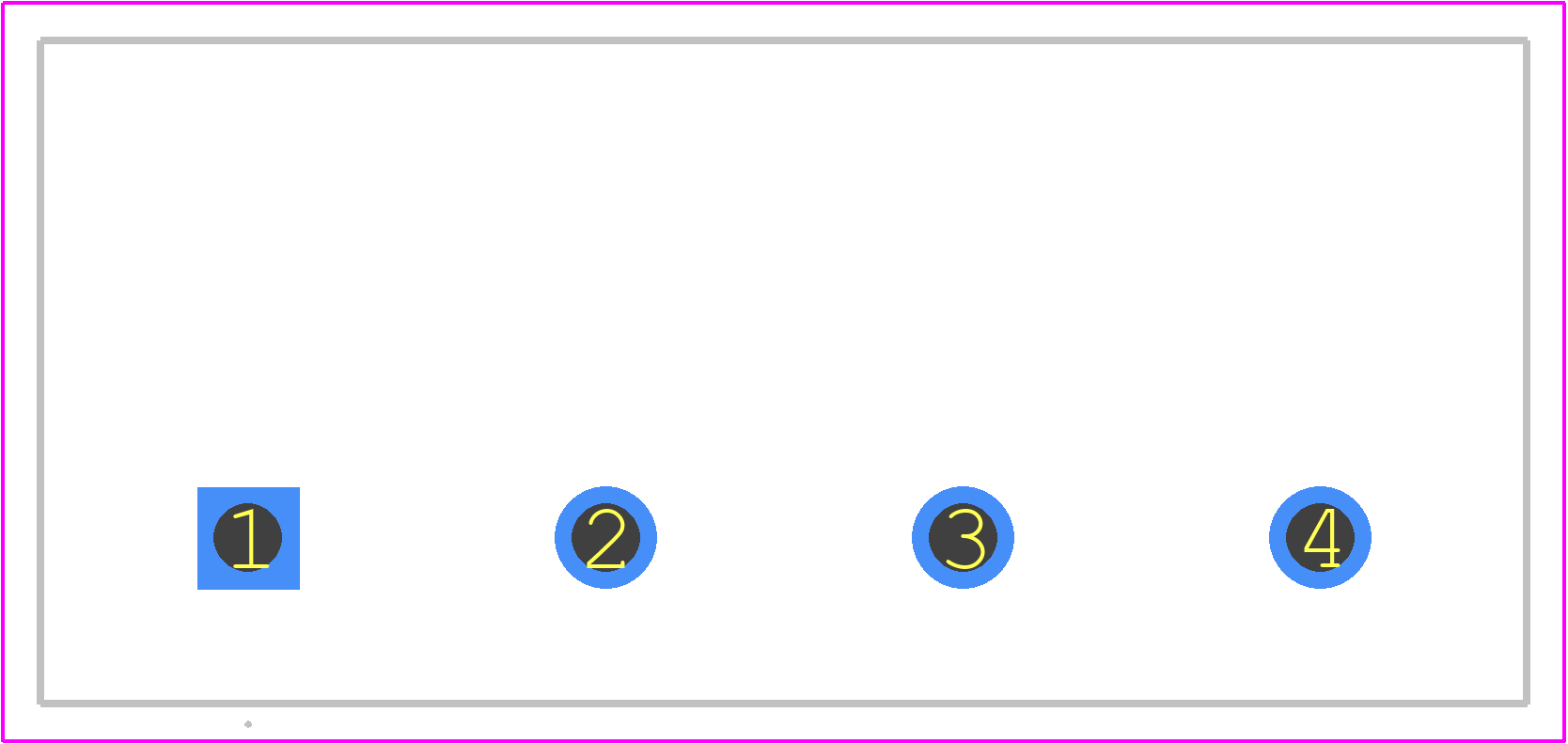

PCB Footprints
YK4410403000G - Amphenol PCB footprint - Other - Other - YK4410403000G-4
click to zoom
3D Models
YK4410403000G - Amphenol - 3D model - Other - YK4410403000G-4
click to zoom

YK4410403000G Details

  • Manufacturer Part Number:

    YK4410403000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    6.89

  • Additional Feature:

    STANDARD: UL 94V-0, THERMOPLASTIC

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    30 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CQC; CUL; TUV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Gauge:

    12 AWG

YK4410403000G Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the YK4410403000G connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The YK4410403000G connector is designed to operate in harsh environments. It has a temperature range of -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability.
  • The YK4410403000G connector has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 connect and disconnect cycles without compromising its performance or reliability.
  • The YK4410403000G connector is designed for signal integrity and can support high-speed data transmission up to 3.0 Gbps. However, it's essential to follow the recommended PCB layout and design guidelines to ensure signal integrity and minimize signal loss.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

YK4410403000G Overview

Use the download button to access the YK4410403000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YK441, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
