YM3433B-F - Yamaha

YM3433B-F Details

• Manufacturer Part Number:

  YM3433B-F

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

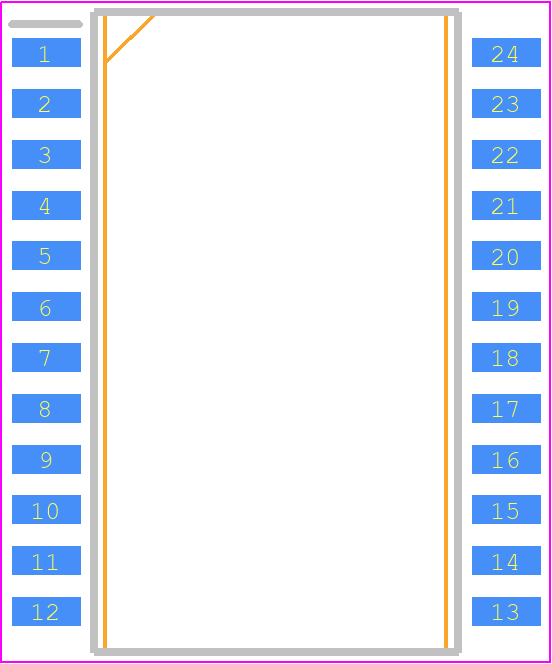

• Package Description:

  PLASTIC, SOP-24

• Pin Count:

  24

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Yamaha LSI

• YTEOL:

  0

• Boundary Scan:

  NO

• Clock Frequency-Max:

  20 MHz

• External Data Bus Width:

  1

• JESD-30 Code:

  R-PDSO-G24

• Length:

  16 mm

• Low Power Mode:

  NO

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  8.5 mm

• uPs/uCs/Peripheral ICs Type:

  DSP PERIPHERAL, DIGITAL FILTER
