YO0801500000G - Amphenol

Description: Fixed Terminal Blocks 8P 3.50MM TERM BLK FIXED HORIZONTAL

Download YO0801500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
YO0801500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

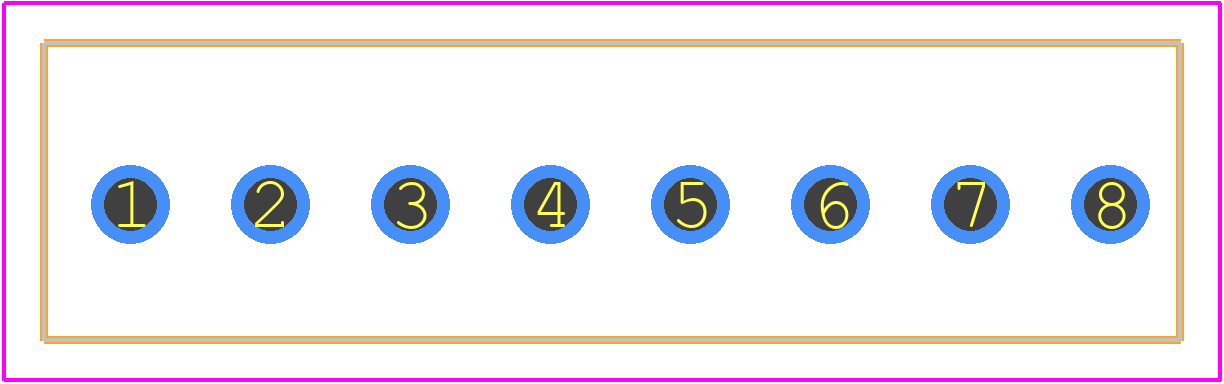

YO0801500000G - Amphenol PCB footprint - Other - Other - YO0801500000G-2
click to zoom
3D Models
YO0801500000G - Amphenol - 3D model - Other - YO0801500000G-2
click to zoom

YO0801500000G Details

  • Manufacturer Part Number:

    YO0801500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    SCREW CLAMP

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; TUV

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.31 mm2

  • Wire Gauge:

    16 AWG

YO0801500000G Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw threads of the YO0801500000G connector, as specified by Amphenol Corporation.
  • Yes, the YO0801500000G connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration, and 3 axes, as per Amphenol's specifications.
  • Yes, the YO0801500000G connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity rating of 95% RH, making it suitable for use in various industrial and aerospace applications.
  • The YO0801500000G connector has a mating cycle life of 500 cycles, as specified by Amphenol Corporation, ensuring reliable connections over an extended period.
  • The YO0801500000G connector can be used with both cable assemblies and PCBs, offering flexibility in design and application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

YO0801500000G Overview

Use the download button to access the YO0801500000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YO080, or try a keyword search, such as Terminals and Terminal Blocks
