YSF-2151+ - Mini-Circuits

Description: Flat Gain Amplifier 900-2150 MHz 50Ω 5 x 6 mm MCLP

Download YSF-2151+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

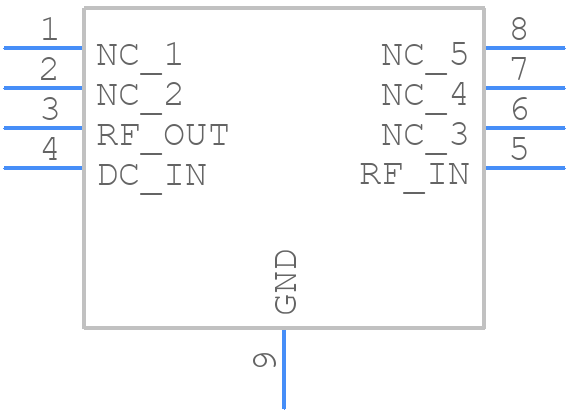

Symbol
YSF-2151+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
YSF-2151+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - DL1636_2023
click to zoom
3D Models
YSF-2151+ - Mini-Circuits - 3D model - Small Outline No-lead - DL1636_2023
click to zoom

YSF-2151+ Details

  • Manufacturer Part Number:

    YSF-2151+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.64

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    21 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2150 MHz

  • Operating Frequency-Min:

    900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    145 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

YSF-2151+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a via-stitched ground plane on the top layer. The device should be placed near the edge of the board to minimize signal reflections. A low-impedance path to ground is essential for the device's internal biasing network.
  • The YSF-2151+ requires a 5V supply voltage and a bias current of 30mA. Ensure that the voltage supply is well-regulated and decoupled, and that the bias current is set correctly using the recommended resistor values. Incorrect biasing can lead to reduced performance, instability, or even damage to the device.
  • The YSF-2151+ can handle input powers up to +15dBm without damage. However, it's recommended to operate the device at input powers below +10dBm to ensure optimal performance and linearity. Exceeding the maximum input power can lead to compression, distortion, or even damage to the device.
  • The YSF-2151+ is a broadband amplifier, but its performance can be optimized for specific frequency ranges by adjusting the input and output matching networks. Use simulation tools or consult with a qualified RF engineer to design and optimize the matching networks for your specific frequency range of interest.
  • The typical noise figure of the YSF-2151+ is around 3.5dB. However, this can vary depending on the specific application, operating frequency, and input power level. Consult the datasheet or contact Mini-Circuits for more information on noise figure performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

YSF-2151+ Overview

Use the download button to access the YSF-2151+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like YSF-2, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
