YSF-322+ - Mini-Circuits

Description: RF Amplifier IC Cellular, GSM, Radar, WiMAX 900MHz ~ 3.2GHz 8-DFN (4.9x6)

Download YSF-322+ Model

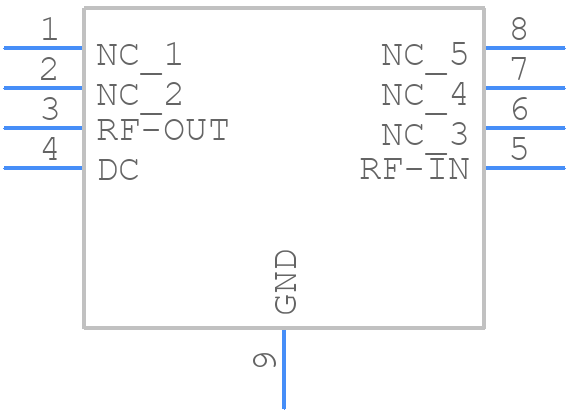

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
YSF-322+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - DL1636_2024
click to zoom
3D Models
YSF-322+ - Mini-Circuits  - 3D model - Small Outline No-lead - DL1636_2024
click to zoom

YSF-322+ Details

  • Manufacturer Part Number:

    YSF-322+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.64

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    14.4 dB

  • Input Power-Max (CW):

    21 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    3200 MHz

  • Operating Frequency-Min:

    900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    145 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

YSF-322+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, a signal layer on the second layer, a power plane on the third layer, and a component layer on the fourth layer. Additionally, keep the signal traces as short and direct as possible, and use 50-ohm impedance-controlled lines.
  • The YSF-322+ has a maximum junction temperature of 150°C. To ensure reliable operation, Mini-Circuits recommends attaching a heat sink to the device, and ensuring good airflow around the device. Additionally, keep the ambient temperature below 50°C.
  • Mini-Circuits recommends matching the input and output impedance to 50 ohms for optimal performance. This can be achieved using a pi-network or a T-network matching circuit.
  • The YSF-322+ requires a bias voltage of 5V and a bias current of 10mA. Ensure that the bias voltage and current are within the recommended specifications, and that the bias circuit is properly decoupled from the RF circuit.
  • The YSF-322+ is designed to operate from 100 MHz to 400 MHz. However, the device can be optimized for specific frequency ranges by adjusting the input and output matching networks.
