Z0109M1 - STMicroelectronics

Description: 600V, 1A, Standard Triac in SO-8

Download Z0109M1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

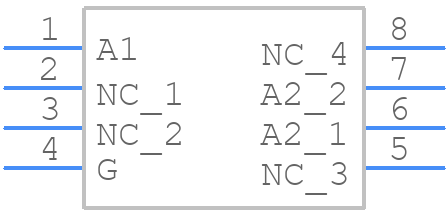

Z0109M1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
Z0109M1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
Z0109M1 - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

Z0109M1 Details

  • Manufacturer Part Number:

    Z0109M1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Date Of Intro:

    2019-11-21

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Device Type:

    4 QUADRANT LOGIC LEVEL TRIAC

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

Z0109M1 Overview

Use the download button to access the Z0109M1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Z0109, or try a keyword search, such as TRIACs
