Z53C8003VSG - LITTELFUSE

Z53C8003VSG Details

• Manufacturer Part Number:

  Z53C8003VSG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

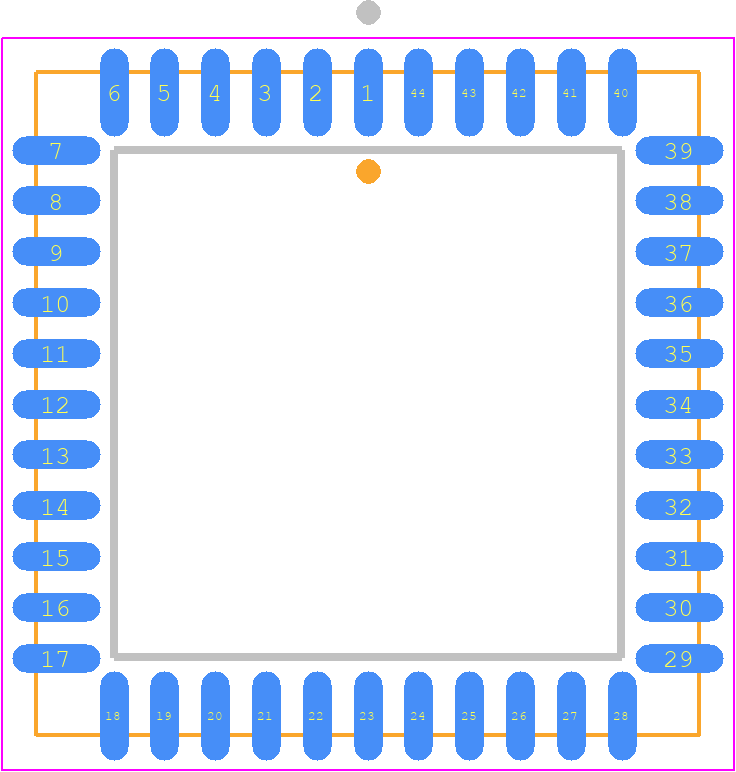

• Package Description:

  PLASTIC, LCC-44

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  0

• Address Bus Width:

  3

• Data Transfer Rate-Max:

  3 MBps

• Drive Interface Standard:

  X3.131

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e3

• Length:

  16.5862 mm

• Number of Terminals:

  44

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  15 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  16.5862 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, SCSI
