Z8018010PSG - LITTELFUSE

Z8018010PSG Details

• Manufacturer Part Number:

  Z8018010PSG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

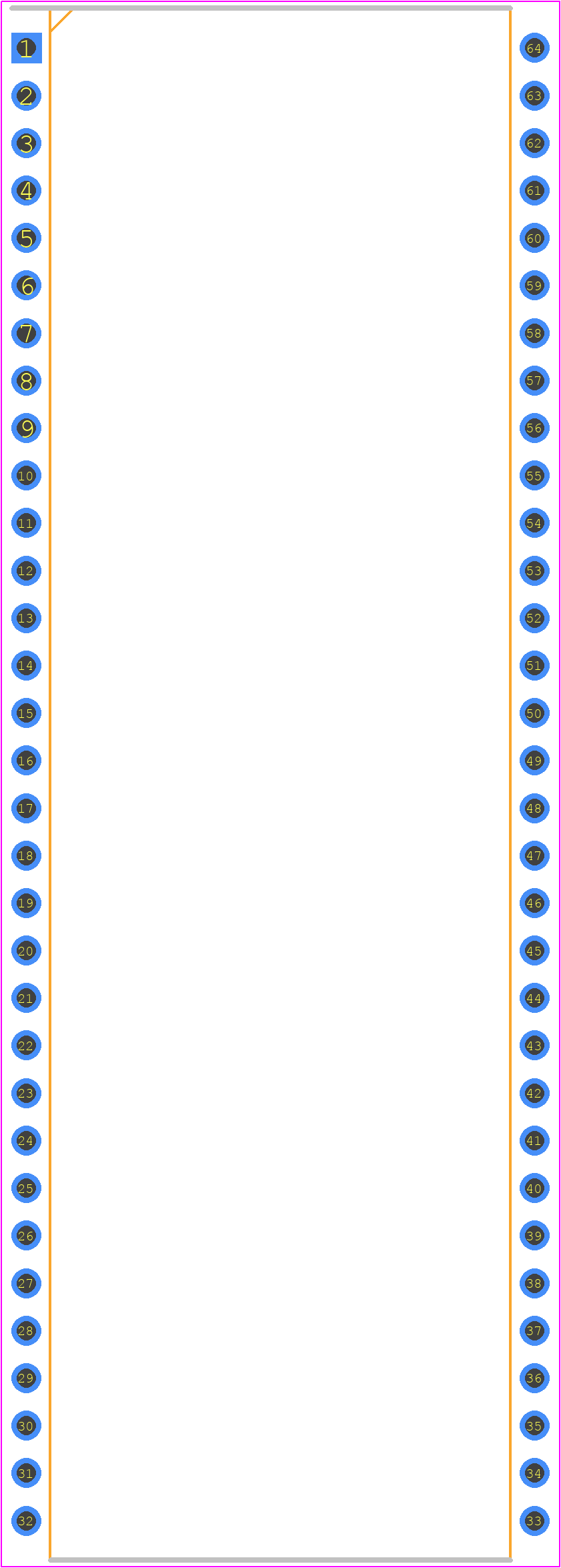

• Package Description:

  DIP-64

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  5.17

• Additional Feature:

  DYNAMIC REFRESH CONTROL; 1M BYTE PHYSICAL MEMORY

• Address Bus Width:

  20

• Bit Size:

  8

• Boundary Scan:

  NO

• External Data Bus Width:

  8

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDIP-T64

• JESD-609 Code:

  e3

• Length:

  57.785 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  2

• Number of External Interrupts:

  3

• Number of Serial I/Os:

  2

• Number of Terminals:

  64

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP64,.75

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.01 mm

• Speed:

  10 MHz

• Supply Current-Max:

  60 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  19.05 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR
