Z8038220ASC - LITTELFUSE

Z8038220ASC Details

• Manufacturer Part Number:

  Z8038220ASC

• Part Life Cycle Code:

  Active

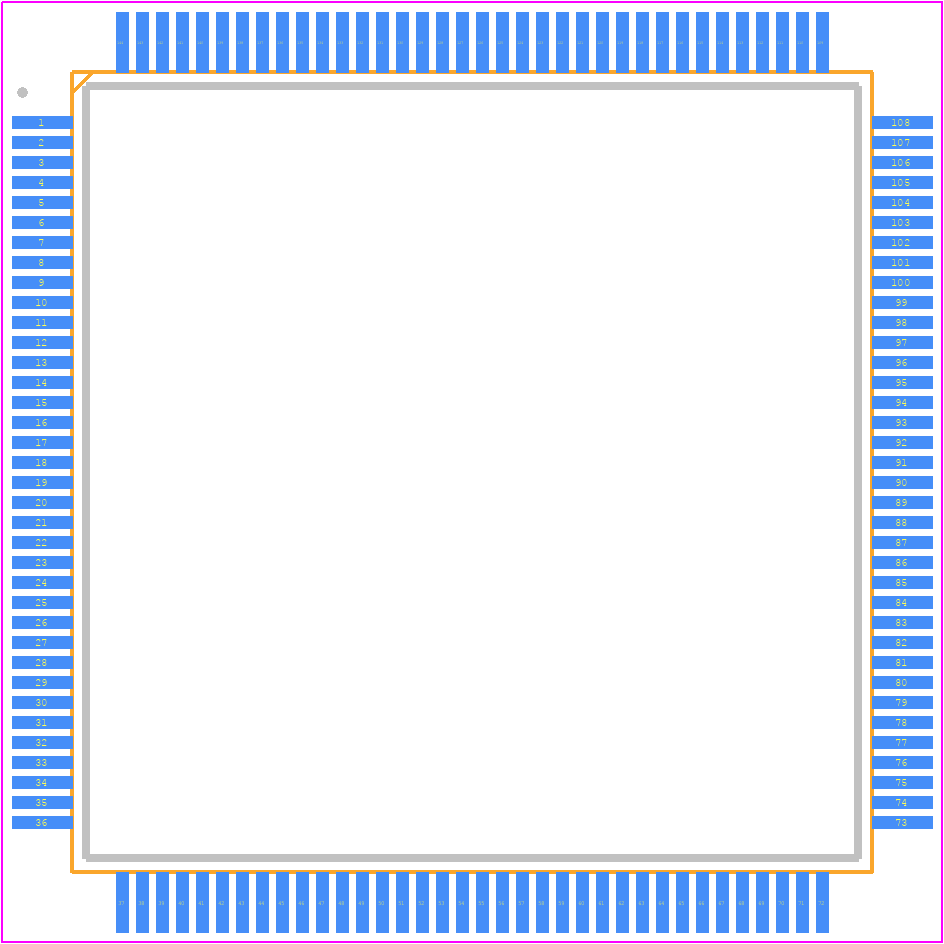

• Package Description:

  PLASTIC, VQFP-144

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  3

• Additional Feature:

  10 MHZ OPERATING FREQUENCY @ 3.3V

• Address Bus Width:

  24

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  40 MHz

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G144

• JESD-609 Code:

  e0

• Length:

  20 mm

• Low Power Mode:

  YES

• Number of Terminals:

  144

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP144,.87SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.6 mm

• Speed:

  20 MHz

• Supply Current-Max:

  150 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR
