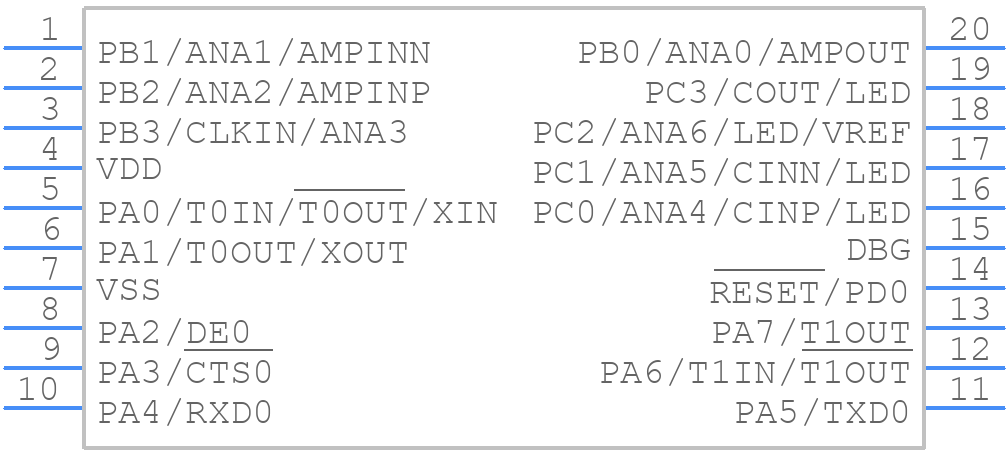

Z8F082ASH020EG2156 - LITTELFUSE

Z8F082ASH020EG2156 Details

• Manufacturer Part Number:

  Z8F082ASH020EG2156

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  7.8

• Has ADC:

  YES

• Bit Size:

  8

• CPU Family:

  Z8

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.8 mm

• Number of I/O Lines:

  17

• Number of Terminals:

  20

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• RAM (bytes):

  1024

• ROM (words):

  8192

• ROM Programmability:

  FLASH

• Speed:

  20 MHz

• Supply Current-Max:

  11.5 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
