Z9007-BL - COILCRAFT

Description: Audio Transformers / Signal Transformers Z9007 For NCP1200 67uH 16 V 4.2 A

Download Z9007-BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

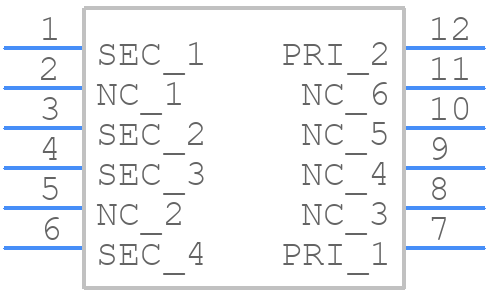

Z9007-BL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

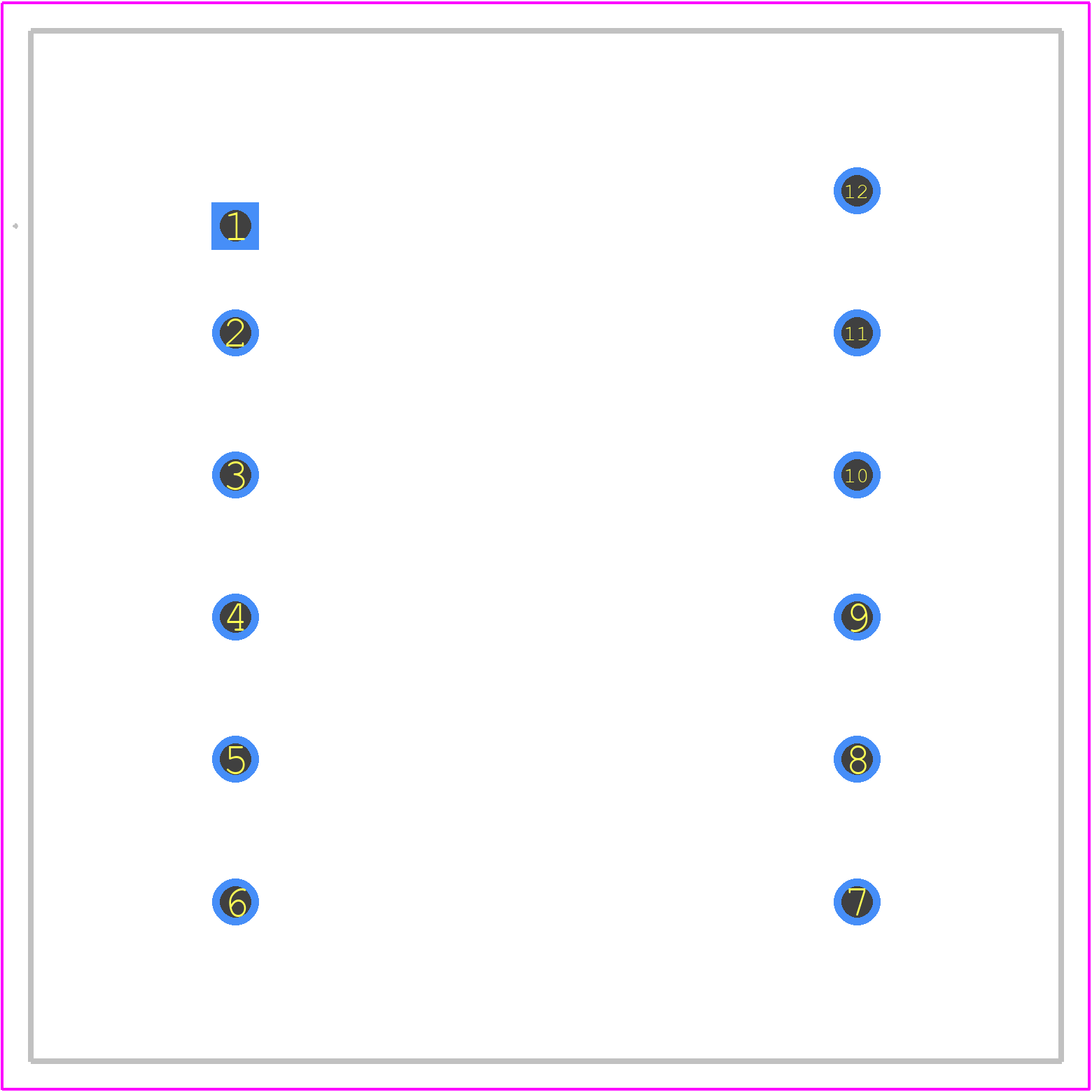

Z9007-BL - COILCRAFT PCB footprint - Other - Other - Z9007-BL-1
click to zoom
3D Models
Z9007-BL - COILCRAFT - 3D model - Other - Z9007-BL-1
click to zoom

Z9007-BL Details

  • Manufacturer Part Number:

    Z9007-BL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    7

  • Additional Feature:

    TURNS RATIO: 1:0.16

  • Height:

    29.7 mm

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • JESD-609 Code:

    e2

  • Length:

    36.8 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    100 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    16 V

  • Power Rating:

    67 W

  • Primary Inductance:

    700 µH

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    36.8 mm

Z9007-BL Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended land pattern for the Z9007-BL in their datasheet, which includes a pad layout and dimensions for optimal soldering and thermal performance.
  • The Z9007-BL has a maximum operating temperature of 125°C, but it's recommended to derate the current rating at higher temperatures. Consult Coilcraft's temperature derating chart for specific guidance.
  • The Z9007-BL has a shielded construction, which helps reduce EMI and radiation. However, it's essential to ensure that the inductor is properly oriented and spaced from other components to maintain its shielding effectiveness.
  • The SRF of the Z9007-BL is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Coilcraft provides an SRF calculator tool on their website to help estimate this value.
  • The Z9007-BL is designed for high-frequency applications, but its performance may degrade above 100 MHz. Consult Coilcraft's high-frequency modeling data and simulation tools to ensure the inductor meets your specific requirements.
