- Part Number Z9280-ALC
- Manufacturer COILCRAFT
- Pin Count 6
- Part Category Transformer
- Package Category Other
- Footprint Name Other - Z9280-ALC-1
- Released Date Feb 16, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
Z9280-ALC Details
-
Manufacturer Part Number:
Z9280-ALC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6.93
-
Application:
SIGNAL
-
Cut-off Frequency-Max:
450 MHz
-
Cut-off Frequency-Min:
0.25 MHz
-
Height:
4.83 mm
Z9280-ALC Frequently Asked Questions (FAQs)
-
Coilcraft provides a recommended land pattern for the Z9280-ALC in their datasheet, which includes a suggested PCB footprint and pad layout to ensure optimal performance and reliability.
-
The Z9280-ALC is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. Consult Coilcraft's temperature derating chart for specific guidance.
-
To minimize magnetic field interference, keep the Z9280-ALC at least 5 mm away from other components, and consider using shielding or a magnetic shield can to contain the field.
-
The SRF of the Z9280-ALC is not explicitly stated in the datasheet, but it can be estimated using Coilcraft's online inductor simulation tool or by contacting their technical support.
-
The Z9280-ALC is rated for a maximum current of 28.5 A, but the actual current handling capability depends on the operating frequency, temperature, and other factors. Consult Coilcraft's current derating chart and thermal management guidelines for specific guidance.
Trust Checks
Community Provided
System Verified
Community Approved
Z9280-ALC Overview

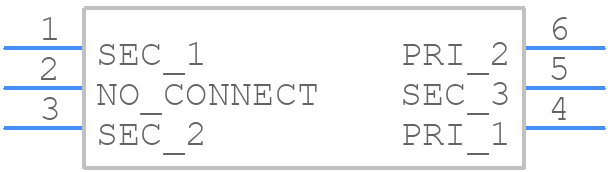

Use the download button to access the Z9280-ALC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Z9280,
or try a keyword search, such as RF Transformers
