ZA9644-AED - COILCRAFT

Description: Flyback Transformer, for Analog Device ADP1032, isolation, SMT, RoHS

Download ZA9644-AED Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

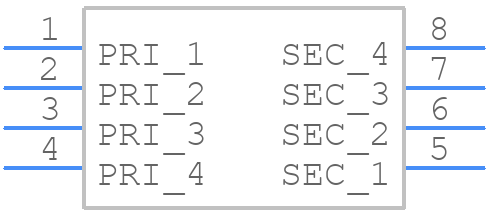

ZA9644-AED - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
ZA9644-AED - COILCRAFT PCB footprint - Other - Other - ZA9644-AED-1
click to zoom
3D Models
ZA9644-AED - COILCRAFT - 3D model - Other - ZA9644-AED-1
click to zoom

ZA9644-AED Details

  • Manufacturer Part Number:

    ZA9644-AED

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    7

  • Additional Feature:

    FLYBACK, HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Height:

    10 mm

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Length:

    10.92 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    28 V

  • Output Voltage 2:

    6 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Primary Inductance:

    376 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    9.25 mm

ZA9644-AED Frequently Asked Questions (FAQs)

  • The recommended land pattern for the ZA9644-AED is available in the Coilcraft Land Pattern Library, which provides a downloadable PDF with detailed dimensions and layout recommendations.
  • To handle the high current rating of the ZA9644-AED, ensure that your PCB design includes adequate copper thickness, width, and spacing to minimize resistance and thermal issues. Consult the Coilcraft Application Note AN-40 for guidance on high-current PCB design.
  • The ZA9644-AED has an operating temperature range of -40°C to +125°C, with a maximum storage temperature of +150°C. However, derating may be necessary for high-temperature applications.
  • Yes, the ZA9644-AED is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the inductor's self-resonant frequency (SRF) and ensure that it does not interfere with your application's operating frequency.
  • Select the correct ZA9644-AED variant by considering factors such as inductance value, current rating, and tolerance. Consult the Coilcraft datasheet and application notes to determine the most suitable variant for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZA9644-AED Overview

Use the download button to access the ZA9644-AED schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZA964, or try a keyword search, such as SMPS Transformers
